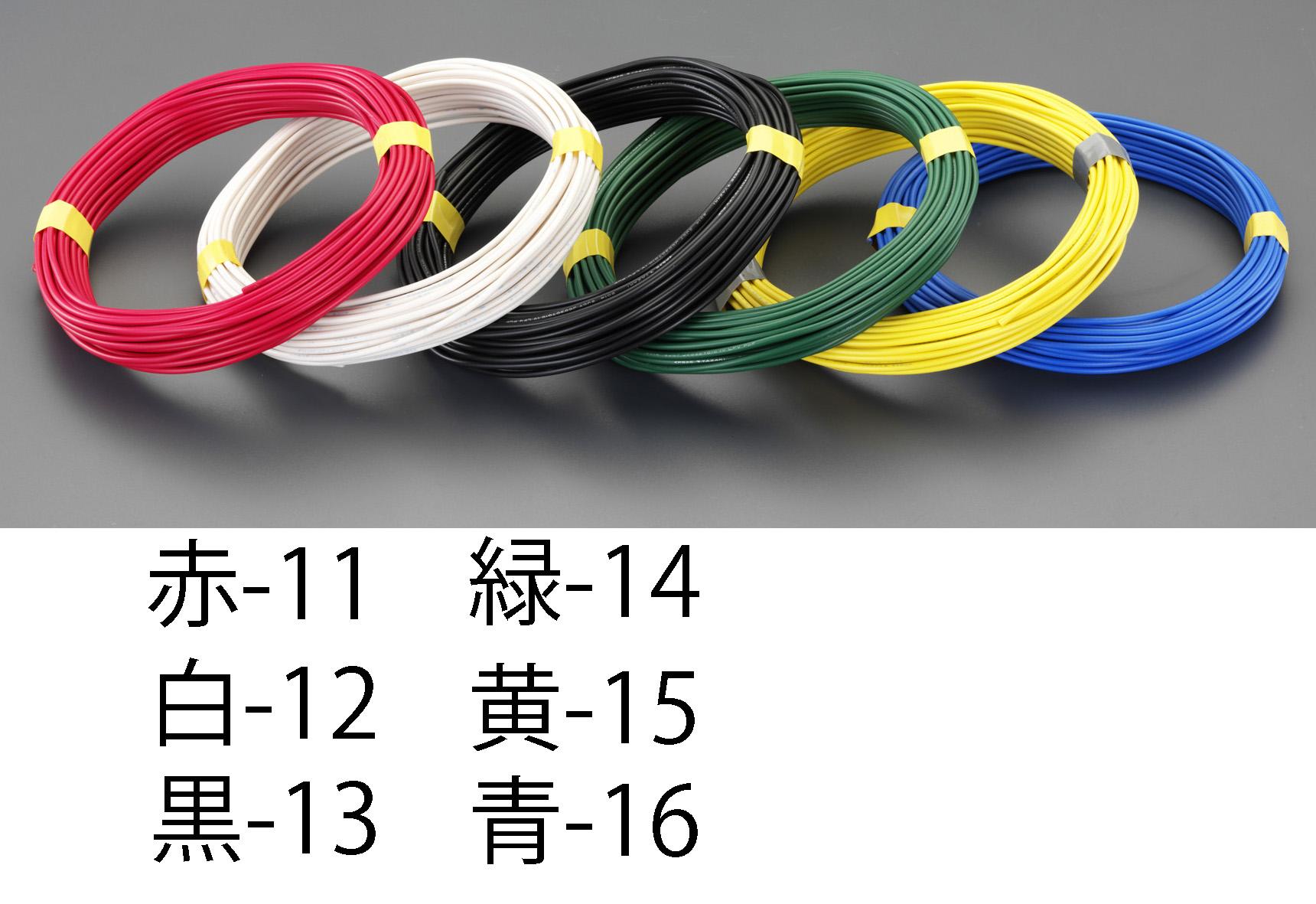

ESCO IV Wire (Stranded/Black) 1.25mm² x 50m EA940AT-13
JAN
4548745979534
ASIN
B00IZ3H4PI
Maker
Model No.
EA940AT-13
Color
Size
Description
Esco-IV Wire - Stranded - 1-25mm² × 50m - 01
IV Wire.
Brand Name: Esco
Color: Black · Length: 50m
Rated: 19A 600V · Nominal Cross-Section Area: 1.25mm²
Specifications: 1-core, Conductor diameter configuration: 7 strands/0.45mm
Conductor diameter outer diameter: Approx. 1.35mm, Insulation thickness: 0.8mm
Finished outer diameter: Approx. 3.0mm
Maximum conductor resistance (20°C): 16.5Ω/km
Material: Stranded wire/Copper, Sheath/Vinyl
Rated temperature: 60°C
Cord Part Number: EA940AT-13
4548745979534
ESCO IV Wire (Stranded/Black) 1.25mm² x 50m EA940AT-13
(text created at , 2025-05-10)
IV Wire.
Brand Name: Esco
Color: Black · Length: 50m
Rated: 19A 600V · Nominal Cross-Section Area: 1.25mm²
Specifications: 1-core, Conductor diameter configuration: 7 strands/0.45mm
Conductor diameter outer diameter: Approx. 1.35mm, Insulation thickness: 0.8mm
Finished outer diameter: Approx. 3.0mm
Maximum conductor resistance (20°C): 16.5Ω/km
Material: Stranded wire/Copper, Sheath/Vinyl
Rated temperature: 60°C
Cord Part Number: EA940AT-13
4548745979534
ESCO IV Wire (Stranded/Black) 1.25mm² x 50m EA940AT-13
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
204x48x224 mm
Package
Weight (Approx.):
Weight (Approx.):
1050 g
7,305 JPY (Including Tax)
Stock :
11
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
