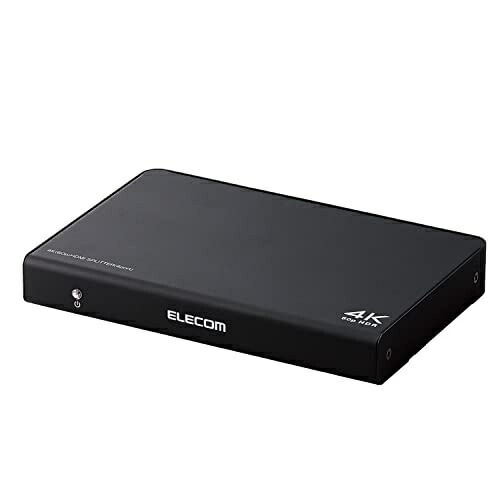

ELECOM HDMI Splitter 4K 60Hz (18Gbps) 1 Input 4 Outputs HDCP 2.2 Compatible VSP-HDP14BK Black

4549550230315

B09PTTWN4Q

VSP-HDP14BK

ELECOM HDMI Splitter - 18Gbps - HDCP 2.2 Compatible - VSP-HDP14BK
\


■ Maximum Display Resolution: 4K 60Hz (4096×2160)\


■ Main Supported Resolutions: 4K (4096×2160) 30Hz/60Hz, 4K (3840×2160) 30Hz/60Hz, 2K (1920×1080) 60Hz, 1080i/720p/576p/576i/480p/480i\


■ HDMI Standard: HDMI 2.0b\


■ HDR: HDR10, Dolby Vision®, HLG Supported\


■ Data Rate: 18Gbps\


■ Video Frequency Bandwidth: 600MHz\


■ Compatible Video Output Devices: AV equipment, home game consoles, media streaming devices, PCs, etc. equipped with HDMI output ports\


■ Compatible Video Display Devices: TVs, displays, projectors, etc. equipped with HDMI input ports\


■ Number of Ports: Input: 1, Output: 4\


■ Connector Type: Input: HDMI Type A 19-pin (female) × 1, Output: HDMI Type A 19-pin (female) × 4, Power: Micro-B connector × 1\


■ Maximum Cable Length: Within 5m for both input and output\


■ HDCP: HDCP 1.4/2.2 compatible\


■ CEC: Supported only on OUTPUT1\


■ HEC: Not supported\


■ ARC: Not supported\


■ Cascading: Up to 2 stages\


■ Compliance Standards: VCCI Class B\


■ AC Adapter Rating: DC 5V 0.6A\


■ AC Adapter Input Voltage: 100V–240V\


■ Weight: Approx. 478g (main unit)\


■ Included Accessories: Dedicated AC Adapter ×1, User Manual ×1\


■ Operating Temperature/Humidity: 5–40°C, Humidity 0–80% (no condensation)\


■ Storage Temperature/Humidity: 20–60°C Humidity 0–80% (no condensation)\


■ Warranty Period: 1 year\


■ Distributes HDMI signals from PCs, game consoles, etc., to up to 4 HDMI-equipped display devices (such as monitors or projectors) simultaneously while maintaining high image and sound quality. (CEC supported only on OUTPUT1; ARC and HEC not supported.) Operation of all devices is not guaranteed.\


■ Supports display output up to 4096×2160 at 60Hz resolution, enabling high-definition, immersive viewing of photos and web content on large screens.\


■ Supports both mirroring and multi-display modes.\


■ Enables efficient presentations by distributing clear images and is also ideal for demonstrations.\


■ Features a slim design for easy placement, utilizing a metal case with excellent heat dissipation and noise resistance.\


■ Same case size as the previous model VSP-HD14BK, making replacement easy.\


■ HDMI ports feature gold-plated connectors for corrosion resistance and signal integrity. \


■ Supports HDR10, Dolby Vision®, and HLG HDR content for bright, beautiful video output.\


■ HDCP 1.4/2.2 compliance enables playback of copyright-protected content like 4K broadcasts and movies.\


■ Includes an AC adapter to ensure stable operation.\


■ Premium HDMI cables (HDMI-certified) up to 5m in length can be used for all input/output ports.\


■ Features an A/B mode switch. (A mode outputs at a common resolution and audio format; B mode...)

134x67x303 mm

720 g
