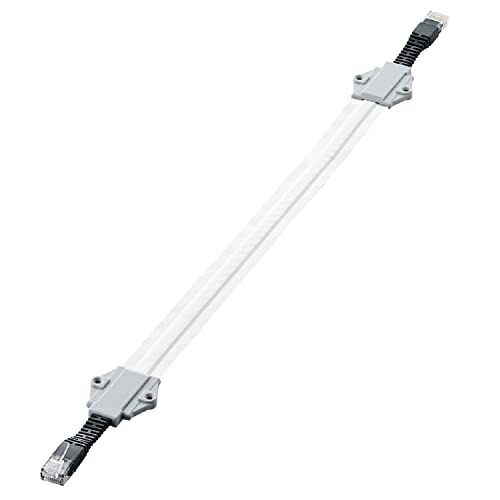

ELECOM LAN Cable 0.4m Gap CAT6A Silver LD-VAPF6A/SV04

4549550239059

B09QW1WQR6

LD-VAPF6A/SV04

ELECOM LAN Cable, CAT6A Compliant, LD-VAPF6A-SV04

■Color: Silver

■Interface: RJ-45

■Standard: Cat6A Compatible (Compatible with 10GBASE-T/1000BASE-TX/1000BASE-T/100BASE-TX/10BASE-T)

■Transmission Speed: 10Gbps

■Transmission Bandwidth: 500MHz

■Number of Cores: 8

■Wiring Method: Straight Wiring

■Twisted Pair Cable: Yes

■Shielding: No

■Cross-Wire Insertion: No

■Outer Sheath Material: Aluminum

■Conductor Configuration: Stranded/Solid Wire

■Connectors: With Connectors on Both Ends

■Molded Connector: Yes

■Slim Connector: No

■Connectors with Anti-Break Cover: No

■Non-Breakable Connector: No

■PoE: Yes (PoE/IEEE802.3af)

■Operating Environment: Operating Temperature Range: -30°C to +60°C Operating Humidity Range: 0% to 60% Environmental Considerations: Not compliant with EU RoHS Directive, THINK ECOLOGY Marked Cable Length: Approximately 0.4m (Aluminum Reinforced Section Approximately 230mm) *Including Connectors Cable Thickness: Approximately 1.5mm Securing Method: Four Screw Holes (M3 Compatible, Screws Not Included) Packaging: Aluminum Foil Bag + Sticker This Cat6A compliant LAN cable can be routed through gaps in windows and doors. This approximately 1.5mm flat cable allows you to route the cable through gaps in windows and doors without drilling holes in the wall. Reinforced with aluminum tape, it is resistant to weight and bending, and can be used with windows and doors closed. Supports PoE (IEEE802.3af) for power supply. Note: The connected cable and device must be PoE compatible.

■Ensures stable data transfer speeds in 1000BASE-TX/1000BASE-T/100BASE-T environments.

■Screw holes on both ends of the cable allow for mounting to a wall or floor. *Screws are not included.

■*Except for the aluminum tape, the cable is not waterproof. Be sure to waterproof the cable when using outdoors. *To prevent cable breakage, avoid installing the cable near windows or doors that are frequently opened and closed.

■This product meets one or more of our company's environmental certification standards and bears the "THINK ECOLOGY" mark.

■This product is committed to environmental conservation and uses packaging made exclusively of paper, cardboard, and plastic bags. ELECOM General Information Center TEL: 0570-084-465 FAX: 0570-050-012 Business Hours: 10:00 AM - 7:00 PM, Open 365 Days a Year Brand Name: ELECOM (Main Unit Only) This Cat6A compliant LAN cable can be routed through gaps in windows and doors. The approximately 1.5mm thin flat cable allows you to pass the cable through gaps in windows and doors without drilling holes in the wall. Aluminum tape reinforcement makes it resistant to weight and bending, allowing it to be used with windows and doors closed. It supports PoE (IEEE802.3af) for power supply. *The connected cable and device must be PoE-compatible. Ensures stable data transfer speeds in 1000BASE-TX, 1000BASE-T, and 100BASE-T environments. Screw holes on both ends of the cable allow for wall or floor mounting. *Screws not included. *The area other than the aluminum tape is not waterproof. Be sure to waterproof it when using outdoors. *To prevent breakage, avoid installing it near windows or doors that are frequently opened and closed. 4549550239059 ELECOM LAN Cable 0.4m Gap CAT6A Silver LD-VAPF6A/SV04 (text created at , 2025-05-11)

152x41x175 mm

40 g
