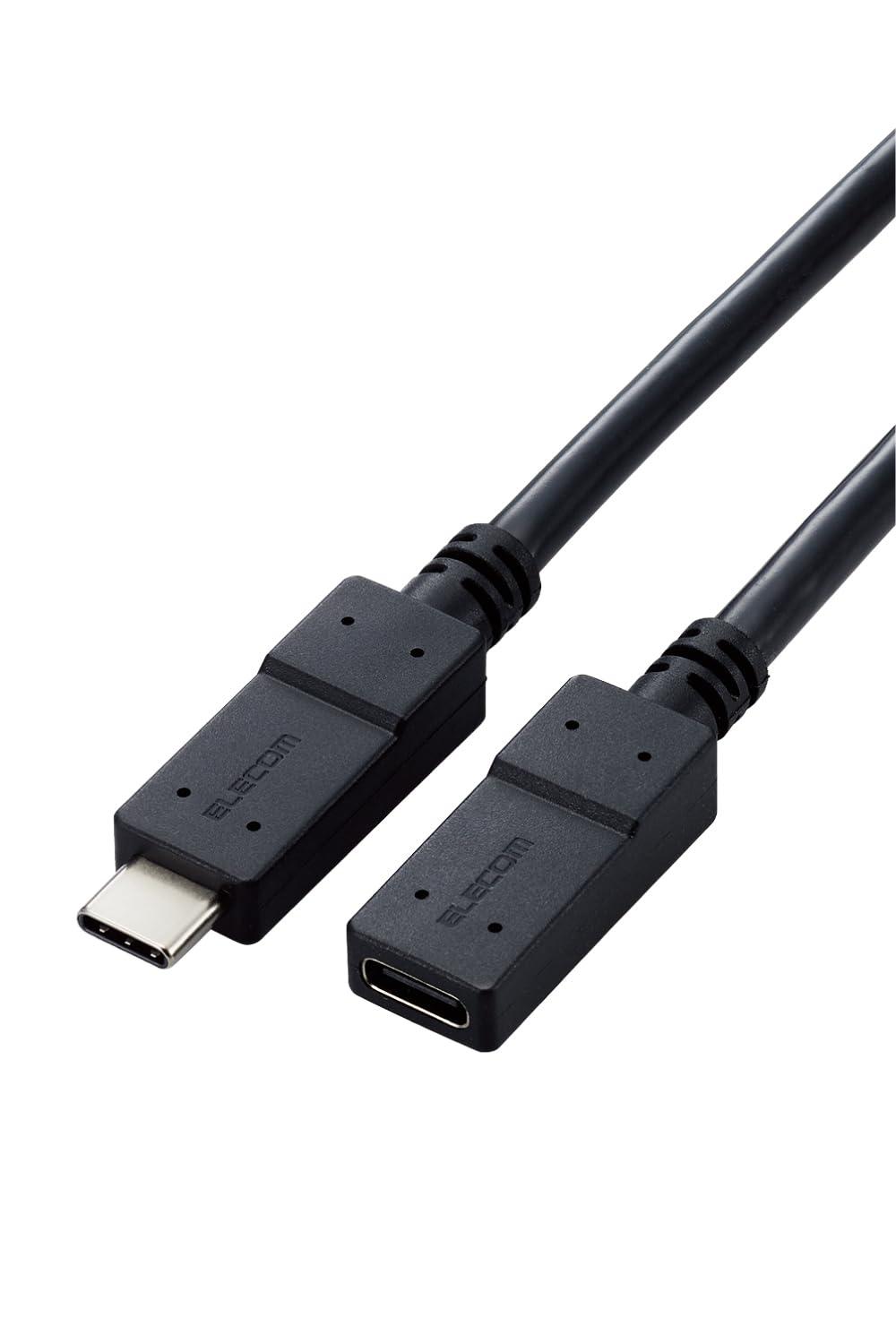

ELECOM USB-C Cable Extension Type C & Type C 5Gbps Charger Extension USB Power Delivery Compatible Black 1m USB3-ECC10BK

4549550302975

B0CPSBNF1Y

USB3-ECC10BK

ELECOM-5Gbps-Charger Extension-Delivery Compatible-USB3-ECC10BK



■Connector Shape (Plug): USB Type-C


■Connector Shape (Port): USB Type-C


■Compatible Devices: Smartphones, PCs, AC chargers, USB hubs, keyboards, etc. equipped with a USB Type-C connector


■Compatible OS (Windows): Windows 11/10

■Compatible OS (macOS): macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12


■USB Standard: Compliant with USB 5Gbps (USB3.2 Gen1) standard


■Supported Transfer Speed: Up to 5Gbps (Theoretical value)


■USB Power Delivery Support: Yes


■Supported Voltage/Current: Up to 20V/3A


■Pin Plating: Gold-plated pins


■Shielding Method: Double shielding


■Cable Length: Approx. 1m (excluding connectors)


■Cable Diameter: Approx. 4.8mm


■Cable Color: Black


■Package Type: Bag + Sticker


■Environmental Considerations: Compliant with EU RoHS Directive (10 substances), Minimal Packaging


■This is an extension cable for USB Type-C cables (USB 5Gbps).


■It extends the cable length of integrated AC chargers and can also be used with devices that have short cables, such as USB hubs, docking stations, and keyboards, enabling connections away from the computer.


■Choose the appropriate usage depending on the situation, such as using a shorter cable normally and connecting the extension cable only when needed. ※Bus-powered devices like external portable disk drives may not function properly due to insufficient power. ※The maximum length for connected cables, including this product, is 2m, with a total of up to 2 cables. Operation is not guaranteed when connecting USB Type-C cables longer than 1m or more than 2 USB Type-C cables. ※Supports a maximum transfer speed of 5Gbps, but USB 5Gbps specifications do not permit extension.

■Supports USB Power Delivery, enabling charging up to 60W (20V/3A). Can charge laptops with USB Type-C ports, smartphones like iPhone and Android, tablets, and more. ※When using USB Power Delivery, both the connected device and the extension cable must support USB Power Delivery.

■Complies with USB 5Gbps, enabling data transfer at up to 5Gbps. ※When connected to devices or cables supporting transfer speeds exceeding 5Gbps, the maximum transfer speed will be limited to 5Gbps.

■Features gold-plated pin connectors for enhanced resistance to corrosion and reduced signal degradation.

■Features a double-shielded cable to protect signals from external noise interference. ※USB Type-C and USB-C are trademarks of USB Implementers Forum


■Complies with the EU's RoHS Directive (Restriction of Hazardous Substances in Electrical and Electronic Equipment) for 10 substances, making it an environmentally friendly product.


■Meets at least one of our company's environmental certification standards and displays the ‘THINK ECOLOGY’ mark.

■Committed to environmental conservation, this product reduces plastic weight in packaging containers by over 20% compared to our standard products.

■Committed to environmental conservation, this product reduces plastic weight in packaging containers by over 20% compared to our standard products.

84x16x173 mm

50 g
