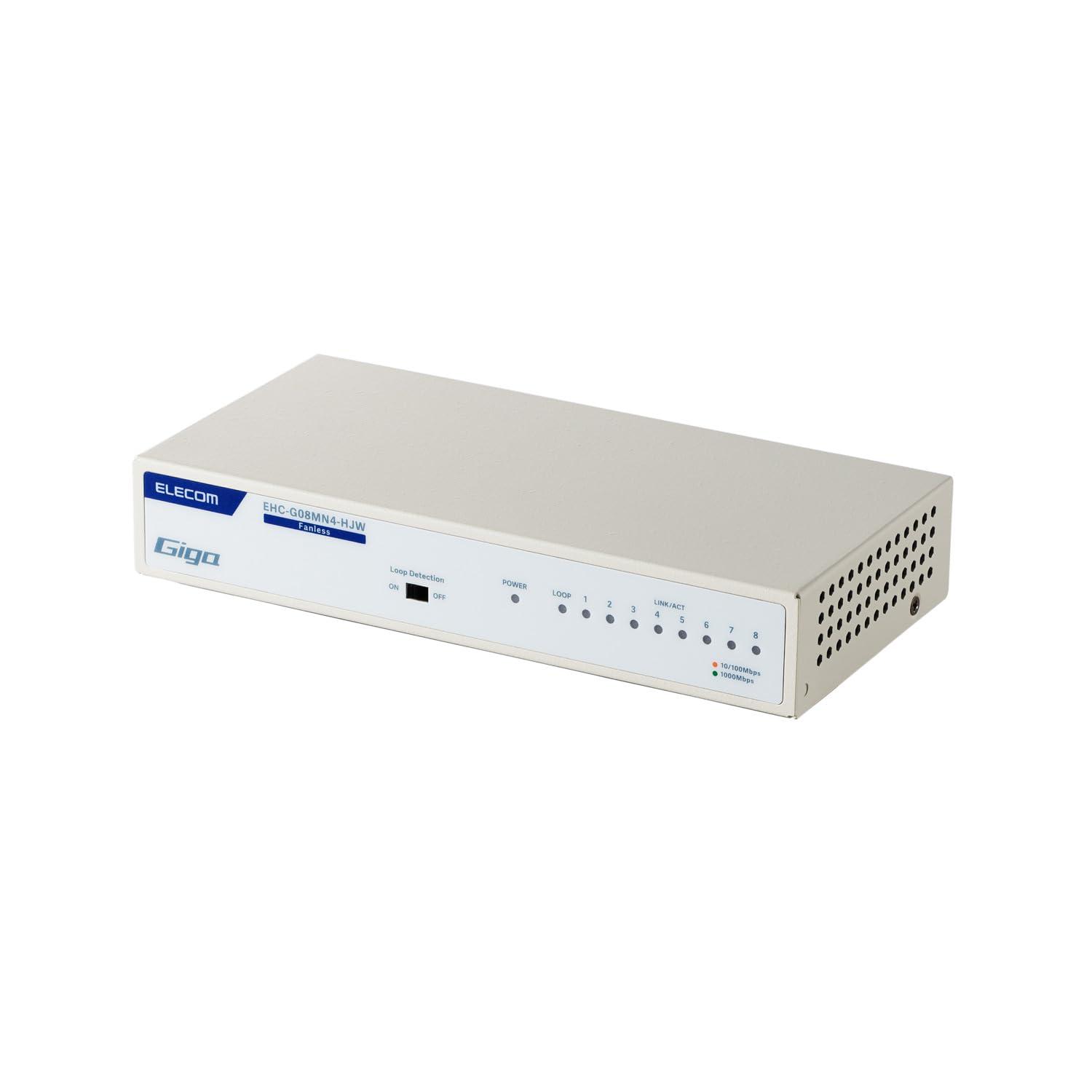

ELECOM Gigabit Switching Hub 8-Port Metal Housing with Magnet Built-in Power Supply Model White EHC-G08MN4-HJW

4549550318594

B0DJ8D3K92

546-1417

ELECOM - Gigabit Switching Hub - 8 Ports - Built-in Power Supply Model - EHC-G08MN4-HJW


■Transmission Speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T)


■Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3


■Switching Method: Store-and-Forward


■Communication Method: Full-Duplex, Half-Duplex


■Flow Control: IEEE 802.3x (full duplex), back pressure (half duplex) Number of ports: 8 AutoMDI/MDI-X: Supported Auto-negotiation: Supported Connector type: RJ-45 x 8 Compatible cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher Buffer memory: 512 Kbytes (dynamically allocated to each port) Switching fabric: 16.0 Gbps Maximum packet Transfer Capacity: 11.9 Mpps


■Packet Transfer Rate: 1,488,095 packets/second (1000 Mbps), 148,809 packets/second (100 Mbps), 14,880 packets/second (10 Mbps)


■Number of MAC Addresses Registered: 8,192 (Total for all ports)


■Jumbo Frames: Supported (15 Kbytes)


■Non-Blocking: Supported


■EAP Transparency: Supported


■BPDU Transparency: Supported


■Loop Detection and Prevention: Loop Detection


■PoE: Not Supported


■Power Supply: Built-in Power Supply


■Input Voltage: AC 100-240V ±10% 50/60Hz


■Power Consumption: 3.4 W (Maximum)


■Heat Dissipation: Approximately 12.3 kJ/h (Maximum)


■Power Saving: Supports Easy Energy Saving E (IEEE 802.3az)


■Energy consumption efficiency: 0.5W/Gbps


■Maximum effective transmission speed: 8.0Gbps


■Port speed and number of ports during measurement: 1Gbps: 8 ports


■External dimensions (W x D x H): Approximately 171.5mm W x 83.6mm D x 30.0mm H (main unit only)


■Weight: Approximately 240g (main unit only)


■Housing material (color): Metal (white)


■Theft Prevention: No security slot

■Installation Methods: Horizontal installation, wall mounting, magnet

■Wall Mounting Holes: Yes

■Operating Environment: Temperature: 0°C to 50°C, Humidity: 10% to 90% (non-condensing)

■Storage Environment: Temperature: -40°C to 70°C, Humidity: 5% to 90% (non-condensing)

■MTBF: 750,000 hours @ 25°C, 287,000 hours @ 50°C

■Regulatory Compliance: EU RoHS compliant (10 substances)

■Conformity: VCCI Class B

■Accessories: One dedicated AC cable (2-pin, approximately 1.8m), one safety sheet. *The rubber feet and magnet are pre-attached to the product. Please keep the magnet attached even when installing horizontally.

■Warranty Period: 1 Year

■Maintenance Service | Delivery: -

■Maintenance Service | Send-Back Extension: -

■Optional Accessories | Magnets: - Brand Name: ELECOM This is an 8-port switching hub with a metal casing, built-in power supply, and Gigabit (1000BASE-T) compatibility. All ports feature "Auto MDI/MDI-X" functionality, which automatically detects straight or crossover cables, preventing connection errors. Its quiet, fanless design eliminates distracting noise, making it ideal for use in quiet rooms. The main board does not use electrolytic capacitors, ensuring a long-lasting, reliable switching hub. The AC cable uses a tracking-resistant outlet plug, preventing tracking issues even after long-term installation. 4549550318594 ELECOM Gigabit Switching Hub 8-Port Metal Casing with Magnet and Built-in Power Supply Model White EHC-G08MN4-HJW (text created at , 2025-05-10)

95x65x194 mm

640 g
