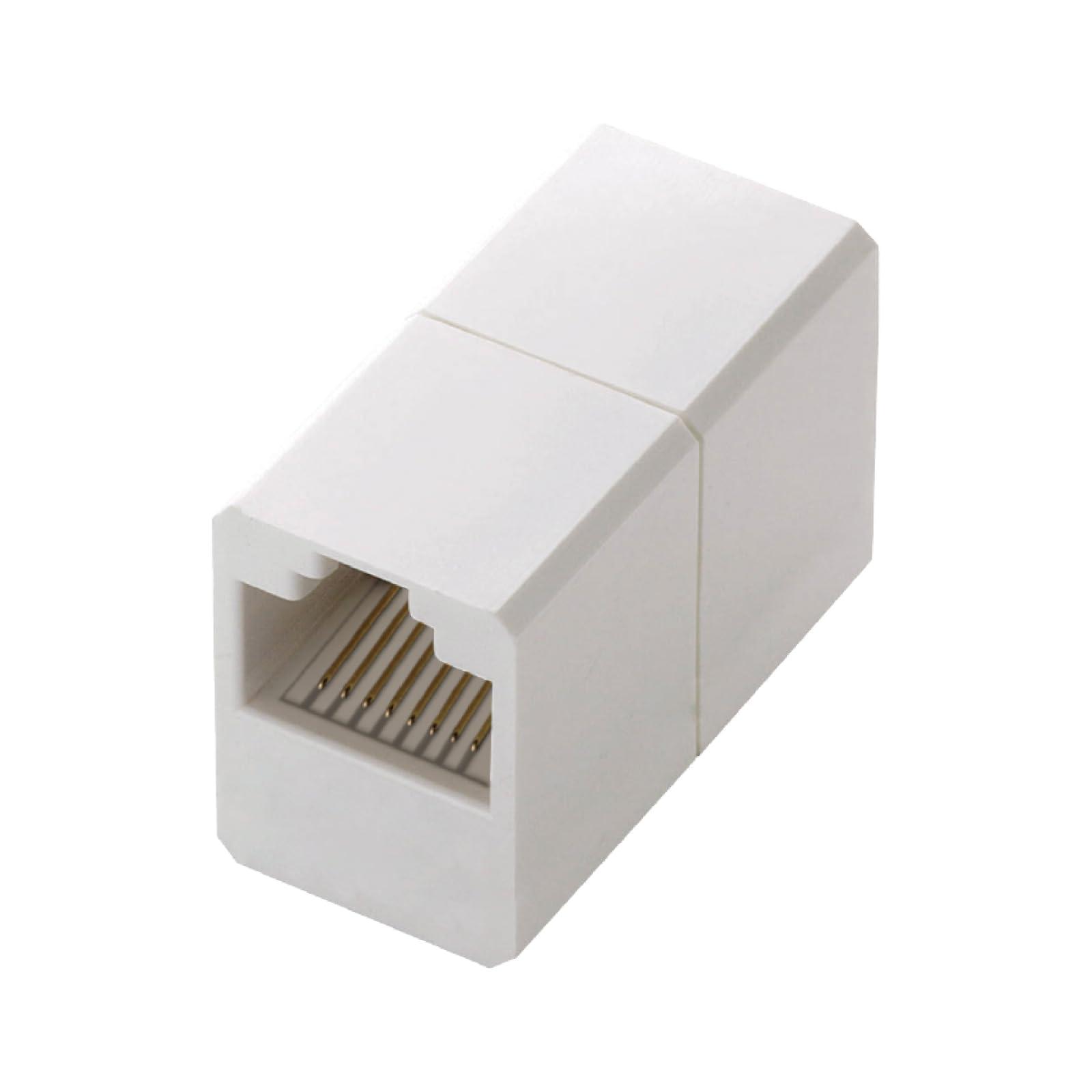

ELECOM RJ45 Extension Connector (Cat5e/Magnetic) LD-RJ45U5EMWH

4549550381321

B0FJDN6MD8

LD-RJ45U5EMWH

ELECOM - Relay Connector - LAN Cable - With Magnet - LD-RJ45U5EMWH
\


■Specifications: Cat5e (1000BASE-T/100BASE-TX/10BASE-T)\


■Transmission Speed: Up to 1Gbps\


■Transmission Bandwidth: 100MHz\


■Interface: RJ45 Connector\


■Wiring Method: Straight-Through\


■Shielding: No (UTP Specification)\


■PoE: Yes\


■Color: White\


■Dimensions: Width approx. 14.6mm × Depth approx. 30.6mm × Height approx. 19.3mm\


■Weight: Approx. 7g\


■Package Type: Bag + Seal\


■Environmental Considerations: Compliant with EU RoHS Directive (10 substances), THINK ECOLOGY Mark\


■This is an RJ45 extension connector for extending Cat5e LAN cables.\


■Features a magnet, allowing it to adhere to steel desks, computer racks, etc. Minimizes cable clutter for a tidy desk area. Convenient for bundling during storage.\


■Ensures stable data transfer speeds in 1000BASE-T/100BASE-TX/10BASE-T environments.\


■Minimizes transmission loss during extension, reducing data degradation caused by LAN cable lengthening. *Can be used to extend Cat5e LAN cables, though Cat5e specifications do not permit cable extension.\


■Compact size for easy installation in tight spaces.\


■Compatible with UTP (Unshielded Twisted Pair) type LAN cables.\


■Environmentally friendly product compliant with the EU's RoHS Directive (Restriction of Hazardous Substances in Electrical and Electronic Equipment) covering 10 substances.\


■Meets at least one of our company's environmental certification standards and displays the ‘THINK ECOLOGY’ mark.\


■Committed to environmental conservation, this product's packaging consists solely of paper, cardboard, and polyethylene bags.\

112x15x121 mm

10 g
