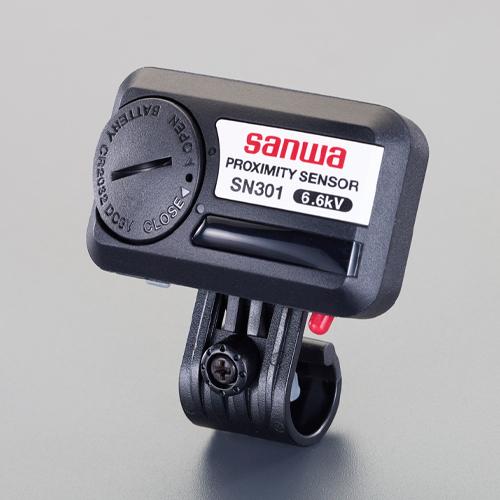

ESCO Proximity Sensor for Overhead Power Lines / Helmet Mount AC 6.6kV EA707DZ-11
JAN
4550061112090
ASIN
B0BWR45YJL
Maker
Model No.
EA707DZ-11
Color
Size
70.2 (W) × 30.4 (D) × 43.5 (H) mm
Description
Proximity Sensor - For Overhead Power Lines - Helmet Mount - AC 6.6kV - EA707DZ-11
▪️ Frequency: 50Hz / 60Hz
▪️ Rated Voltage: AC 6600V
▪️ Alarm Trigger Distance: AC 6.6kV (Ground Voltage AC 3.8kV) / Approx. 70cm (Reference Value)
▪️ Caution Start Distance: AC6.6kV (Earth Voltage AC3.8kV) / Approx. 140cm (Reference Value)\
▪️ Sound Level: 50dB or higher at 20cm from sound source\
▪️ Light Level: Visible light emission under 8000lx brightness environment\
▪️ Warning Method: Buzzer sound / LED illumination\
▪️ Applicable Wires: Distribution lines (unshielded wires), exposed live parts, etc., carrying commercial AC voltage\
▪️ Guaranteed Operating Temperature/Humidity Range: -10°C to 40°C\
▪️ Withstand Voltage: 20kV AC for 1 minute\
▪️ Power source: CR2032 (lithium battery) 3V × 1 (included)\
▪️ Dimensions: 70.2 (W) × 30.4 (D) × 43.5 (H) mm\
▪️ Weight (g): Approx. 60\
▪️ For overhead power lines\
▪️ Detects high-voltage charged parts up to AC 6.6kV\
▪️ Warns of proximity to high-voltage charged parts with buzzer sound and LED illumination\
▪️ Two alarm levels: caution and warning based on proximity distance\
▪️ Self-fault diagnosis function\
▪️ Dustproof and waterproof rating equivalent to IP54\
▪️ CE Mark compliant (IEC61326)\
▪️Simply attach to helmet to detect proximity to high-voltage AC power sources from any direction\
※※For professional use only※※
Brand Name: Esco
Frequency: 50Hz/60Hz
Rated Voltage: AC 6600V
Alarm Trigger Distance: AC 6.6kV (Earth Voltage AC 3.8kV) /Approx. 70cm (reference value)
Caution start distance: AC6.6kV (ground voltage AC3.8kV)/Approx. 140cm (reference value)\ Volume: 50dB or more at 20cm from sound source
4550061112090
B0BWR45YJL
ESCO Proximity Sensor for Overhead Power Lines/Helmet Mount AC6.6kV EA707DZ-11
(text created at , 2025-11-12)
▪️ Frequency: 50Hz / 60Hz
▪️ Rated Voltage: AC 6600V
▪️ Alarm Trigger Distance: AC 6.6kV (Ground Voltage AC 3.8kV) / Approx. 70cm (Reference Value)
▪️ Caution Start Distance: AC6.6kV (Earth Voltage AC3.8kV) / Approx. 140cm (Reference Value)\
▪️ Sound Level: 50dB or higher at 20cm from sound source\
▪️ Light Level: Visible light emission under 8000lx brightness environment\
▪️ Warning Method: Buzzer sound / LED illumination\
▪️ Applicable Wires: Distribution lines (unshielded wires), exposed live parts, etc., carrying commercial AC voltage\
▪️ Guaranteed Operating Temperature/Humidity Range: -10°C to 40°C\
▪️ Withstand Voltage: 20kV AC for 1 minute\
▪️ Power source: CR2032 (lithium battery) 3V × 1 (included)\
▪️ Dimensions: 70.2 (W) × 30.4 (D) × 43.5 (H) mm\
▪️ Weight (g): Approx. 60\
▪️ For overhead power lines\
▪️ Detects high-voltage charged parts up to AC 6.6kV\
▪️ Warns of proximity to high-voltage charged parts with buzzer sound and LED illumination\
▪️ Two alarm levels: caution and warning based on proximity distance\
▪️ Self-fault diagnosis function\
▪️ Dustproof and waterproof rating equivalent to IP54\
▪️ CE Mark compliant (IEC61326)\
▪️Simply attach to helmet to detect proximity to high-voltage AC power sources from any direction\
※※For professional use only※※
Brand Name: Esco
Frequency: 50Hz/60Hz
Rated Voltage: AC 6600V
Alarm Trigger Distance: AC 6.6kV (Earth Voltage AC 3.8kV) /Approx. 70cm (reference value)
Caution start distance: AC6.6kV (ground voltage AC3.8kV)/Approx. 140cm (reference value)\ Volume: 50dB or more at 20cm from sound source
4550061112090
B0BWR45YJL
ESCO Proximity Sensor for Overhead Power Lines/Helmet Mount AC6.6kV EA707DZ-11
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
29,021 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
