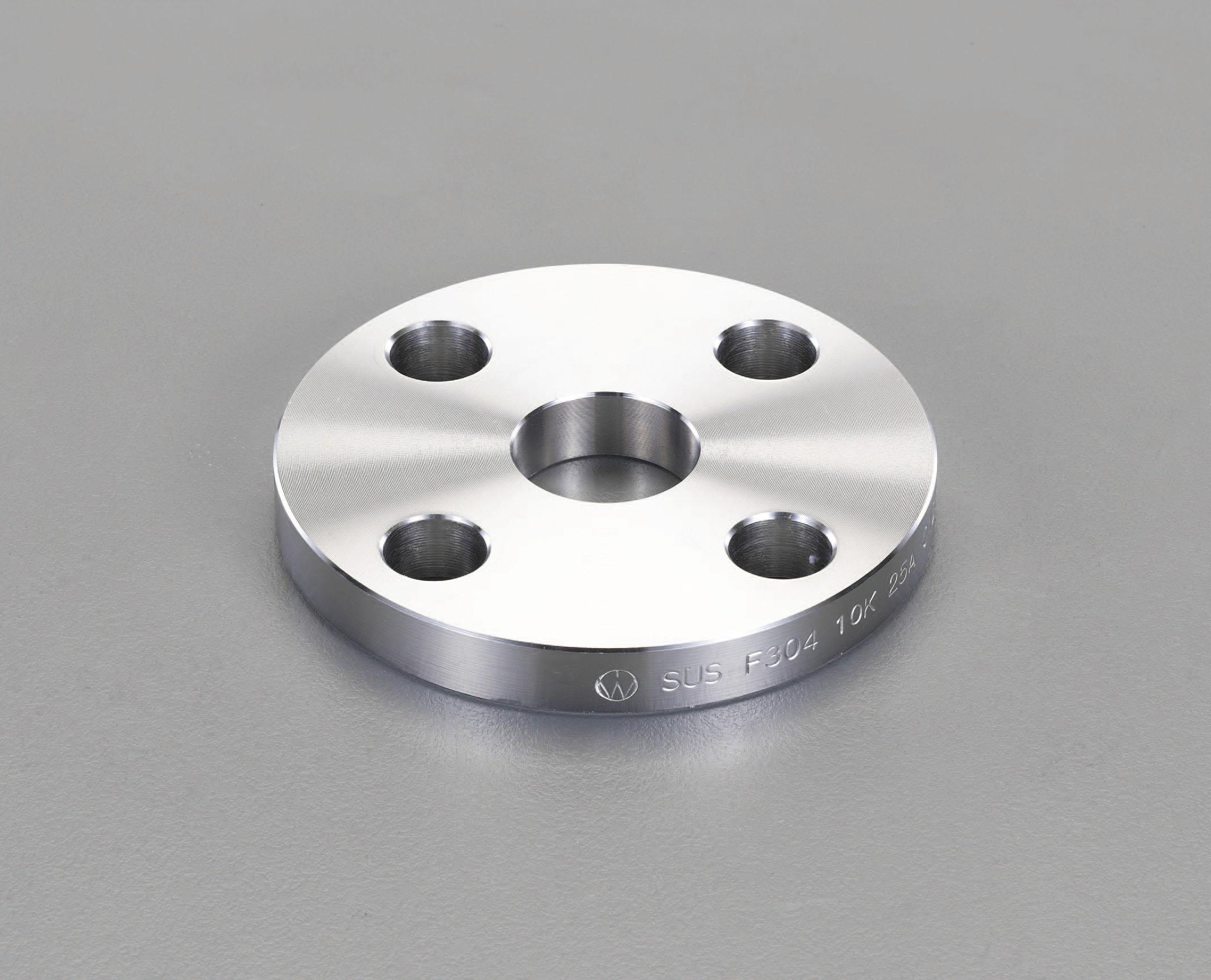

ESCO 1/2" /10K Weld-In Flange (Stainless Steel) EA469FJ-4A
JAN
4550061251393
ASIN
B07NGPYMTG
Maker
Model No.
EA469FJ-4A
Color
Size
Description
ESCO-10K-Weld-On Flange-Stainless Steel-EA469FJ-4A
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…15 (1/2”)
Applicable Pipe Outer Diameter…21.7mm
Class…10K
Inner Diameter (do)…22.2mm
Outer Diameter (D)…95mm
Thickness (t)…12mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...51mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...15mm
Weight...Approx. 560g
Maximum Working Pressure...0.98MPa
Maximum Working Temperature...200℃
Brand Name: Esco
4550061251393
Esco 1/2" /10K Welded Insert Flange (Stainless Steel) EA469FJ-4A
(text created at , 2025-05-09)
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…15 (1/2”)
Applicable Pipe Outer Diameter…21.7mm
Class…10K
Inner Diameter (do)…22.2mm
Outer Diameter (D)…95mm
Thickness (t)…12mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...51mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...15mm
Weight...Approx. 560g
Maximum Working Pressure...0.98MPa
Maximum Working Temperature...200℃
Brand Name: Esco
4550061251393
Esco 1/2" /10K Welded Insert Flange (Stainless Steel) EA469FJ-4A
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
97x30x126 mm
Package
Weight (Approx.):
Weight (Approx.):
600 g
1,569 JPY (Including Tax)
