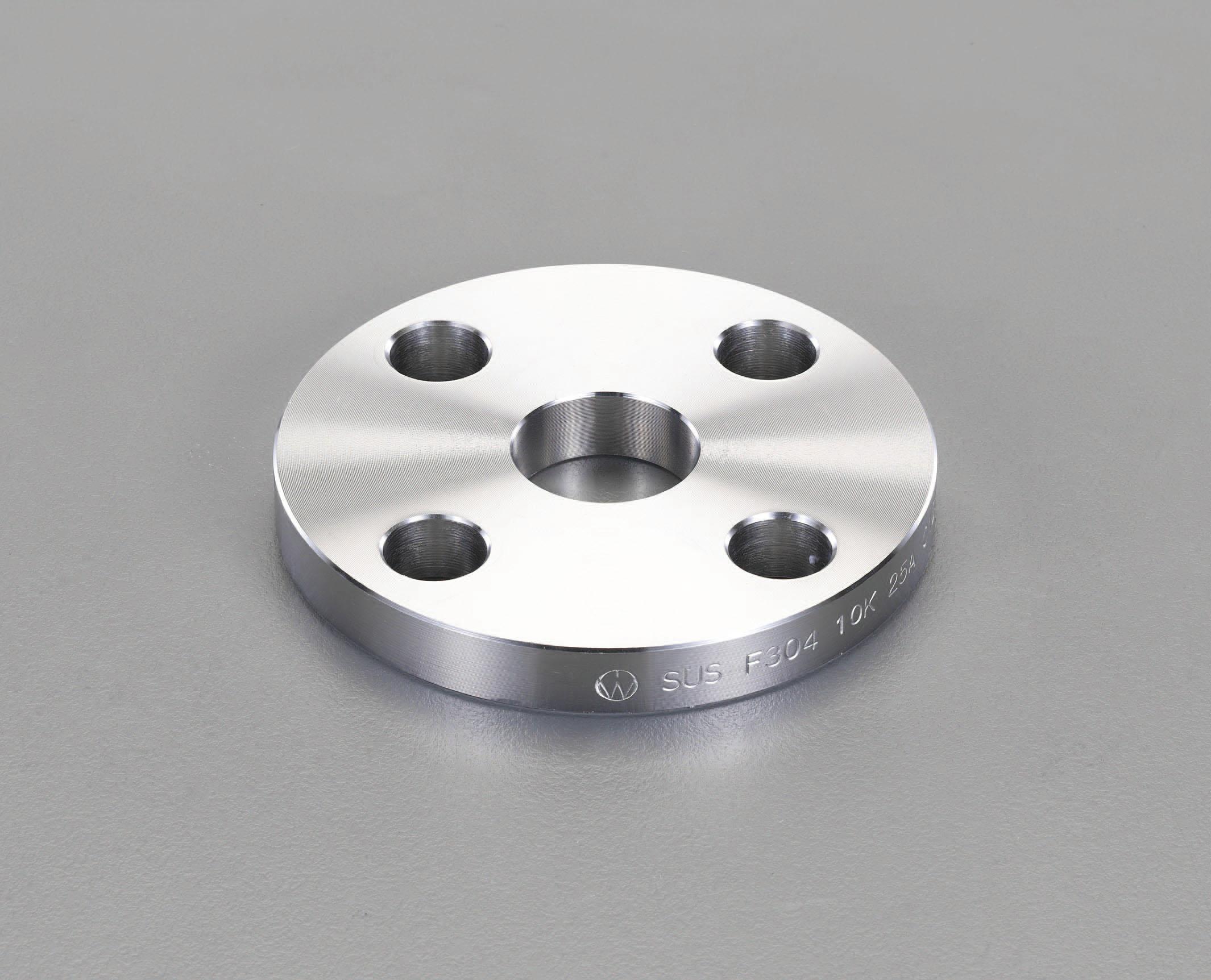

ESCO 3/4" /10K Weld-On Flange (Stainless Steel) EA469FJ-6A
JAN
4550061251409
ASIN
B07NGKLV6Z
Maker
Model No.
EA469FJ-6A
Color
Size
Description
ESCO-10K-Welded Insert Flange-Stainless Steel-EA469FJ-6A
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…20 (3/4”)
Applicable Pipe OD…27.2mm
Class…10K
Inner Diameter (do)…27.7mm
Outer Diameter (D)…100mm
Thickness (t)…14mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...56mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...15mm
Weight...Approx. 720g
Maximum Working Pressure...0.98MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Material: Stainless Steel
Applicable Standard…JISB2220
Applicable Pipe Outer Diameter…27.2mm
4550061251409
Esco 3/4" /10K Welded Slip-On Flange (Stainless Steel) EA469FJ-6A
(text created at , 2025-05-10)
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…20 (3/4”)
Applicable Pipe OD…27.2mm
Class…10K
Inner Diameter (do)…27.7mm
Outer Diameter (D)…100mm
Thickness (t)…14mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...56mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...15mm
Weight...Approx. 720g
Maximum Working Pressure...0.98MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Material: Stainless Steel
Applicable Standard…JISB2220
Applicable Pipe Outer Diameter…27.2mm
4550061251409
Esco 3/4" /10K Welded Slip-On Flange (Stainless Steel) EA469FJ-6A
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
109x35x129 mm
Package
Weight (Approx.):
Weight (Approx.):
758 g
1,932 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
