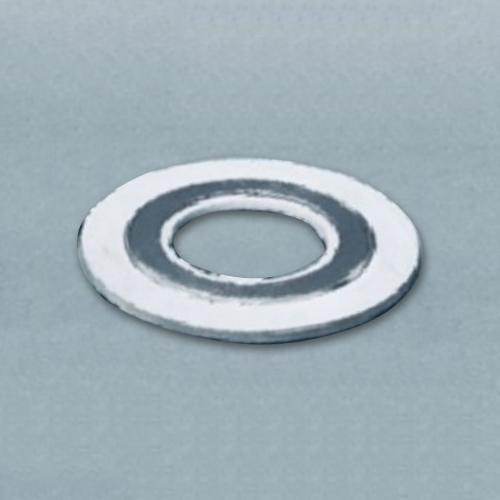

[JIS10K] 15A Swirl Gasket

4550061256060

B0DNYM5DYL

EA351EA-15

Brand Name: Esco

1 piece
Nominal Diameter...15A/n Thickness...4.5mm/n Inner/Outer Ring Material...SUS304/n Application...General Piping/Flanges/n
Minimum Tightening Pressure…68.9MPa/n Gasket Coefficient m Value…3/n Pressure Limit…Water-based Fluids: 43.1MPa/n Gases & Corrosive Fluids: 25.9MPa/n Maximum Service Temperature…Oxidizing Atmosphere: 450℃/n Non-Oxidizing Atmosphere (Steam, etc.): 650℃/n
JIS Standard…JIS B-2404/n Heat Resistance Temperature…-200~650℃ (Steam)/n JIS10K/n
Excellent heat resistance, pressure resistance, and sealing performance. /n Spiral wound gaskets are the most common semi-metallic gaskets, rationally designed for high-temperature and high-pressure applications. /n The presence of inner and outer rings facilitates tightening control and delivers outstanding performance, particularly in steam piping. /n 1 piece
4550061256060
[JIS10K] 15A Spiral Wound Gasket
