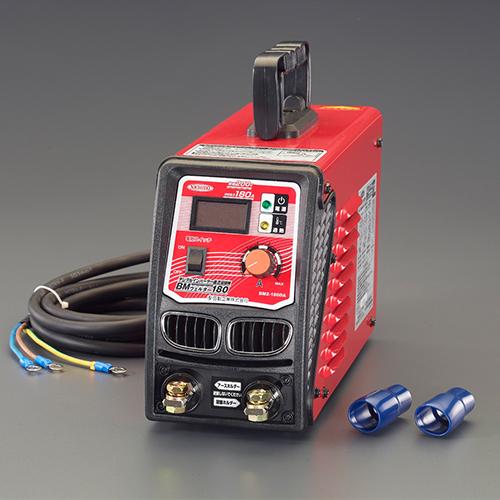

ESCO AC200V/180A Digital Inverter DC Welder EA315HH-2A
JAN
4550061281451
ASIN
B08C7J8HF2
Maker
Model No.
EA315HH-2A
Color
Size
125 (W) × 354 (D) × 196 (H) mm (excluding handles)
Description
Brand Name: Esco
M8×15 Hex Bolts ×2, M8 Nuts ×2, Insulated Terminal Covers (Blue) ×2
Input Power: Single-phase 200V (50/60Hz) Duty Cycle (%): 50 Input Cable: 3.0mm² × 3-core × 3m (M6 round terminals) Compatible Welding Rods: ~φ4.0mm Unit Dimensions (W×D×H) mm: 125(W)×354(D)×196(H)mm (excluding handle)
Weight: 5.7kg Material: Steel Rated Capacity: 7.5KVA (5.3kW) Maximum Welding Current (A): 180 No-Load Voltage (V): Input: 9 / Output: 60
Load Voltage (V): 27 Input Circuit Breaker: 50A or higher recommended Welding Base Material Thickness: 3.0~12.0mm Operating Ambient Temperature: -10℃~40℃ Output terminals: M8
Accessories: M8×15 hex bolts ×2, M8 nuts ×2, Insulated terminal covers (blue) ×2. Features electric shock prevention. Ultra-compact, lightweight, and high-output—doesn't take up space even in high places or tight spaces. Digital display lets you check the current value at a glance. Allows for finer adjustments. Welding holder and earth clip sold separately.
This unit requires adapter installation (sold separately: EA315AN-3, EA315HJ-9) for terminal connection.
4550061281451\ nB08C7J8HF2
ESCO AC200V/180A Digital Inverter DC Welder EA315HH-2A
(text created at , 2025-11-13)
M8×15 Hex Bolts ×2, M8 Nuts ×2, Insulated Terminal Covers (Blue) ×2
Input Power: Single-phase 200V (50/60Hz) Duty Cycle (%): 50 Input Cable: 3.0mm² × 3-core × 3m (M6 round terminals) Compatible Welding Rods: ~φ4.0mm Unit Dimensions (W×D×H) mm: 125(W)×354(D)×196(H)mm (excluding handle)
Weight: 5.7kg Material: Steel Rated Capacity: 7.5KVA (5.3kW) Maximum Welding Current (A): 180 No-Load Voltage (V): Input: 9 / Output: 60
Load Voltage (V): 27 Input Circuit Breaker: 50A or higher recommended Welding Base Material Thickness: 3.0~12.0mm Operating Ambient Temperature: -10℃~40℃ Output terminals: M8
Accessories: M8×15 hex bolts ×2, M8 nuts ×2, Insulated terminal covers (blue) ×2. Features electric shock prevention. Ultra-compact, lightweight, and high-output—doesn't take up space even in high places or tight spaces. Digital display lets you check the current value at a glance. Allows for finer adjustments. Welding holder and earth clip sold separately.
This unit requires adapter installation (sold separately: EA315AN-3, EA315HJ-9) for terminal connection.
4550061281451\ nB08C7J8HF2
ESCO AC200V/180A Digital Inverter DC Welder EA315HH-2A
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
240x200x422 mm
Package
Weight (Approx.):
Weight (Approx.):
5880 g
85,267 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
