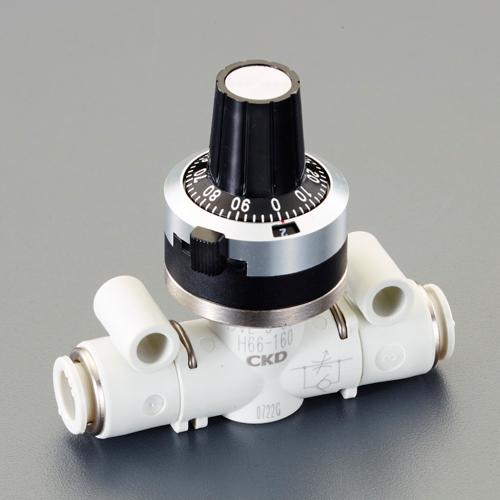

ESCO Speed Controller (160 L/min Control) φ6mm EA153HM-25
JAN
4550061484821
ASIN
B08TB2TVFY
Maker
Model No.
EA153HM-25
Color
Size
Description
Material: Brass Operating Pressure: 0.05~1.0MPa
Maximum Pressure: 1.5MPa Operating Temperature Range: 0-60℃
Operating Fluid: Compressed Air Mounting Thread: R1/4
Tube Outer Diameter: 6mm Resin parts use flame-retardant material (UL94 V-0 equivalent).
Elbow Type. Low-speed type is optional, ideal for controlling equipment requiring low flow rates and fine adjustments, such as micro-speed cylinders.
Brand Name: Esco
Weight (g): 48 Operating Pressure: 0.1~1.0MPa
Operating Fluid: Compressed Air Operating Temperature Range: 0~60℃
Mounting Screw Diameter: 1/8" Pressure Rating: 1.5MPa
RoHS Compliant: Yes Compatible Tube: Outer Diameter: φ6mm
Free Flow Rate (at 0.5MPa): 300L/min (ANR) Controlled Flow Rate (at 0.5MPa): 160L/min (ANR)
4550061484821
ESCO Speed Controller (160 L/min Control) φ6mm EA153HM-25
(text created at , 2025-05-10)
Maximum Pressure: 1.5MPa Operating Temperature Range: 0-60℃
Operating Fluid: Compressed Air Mounting Thread: R1/4
Tube Outer Diameter: 6mm Resin parts use flame-retardant material (UL94 V-0 equivalent).
Elbow Type. Low-speed type is optional, ideal for controlling equipment requiring low flow rates and fine adjustments, such as micro-speed cylinders.
Brand Name: Esco
Weight (g): 48 Operating Pressure: 0.1~1.0MPa
Operating Fluid: Compressed Air Operating Temperature Range: 0~60℃
Mounting Screw Diameter: 1/8" Pressure Rating: 1.5MPa
RoHS Compliant: Yes Compatible Tube: Outer Diameter: φ6mm
Free Flow Rate (at 0.5MPa): 300L/min (ANR) Controlled Flow Rate (at 0.5MPa): 160L/min (ANR)
4550061484821
ESCO Speed Controller (160 L/min Control) φ6mm EA153HM-25
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
118x30x157 mm
Package
Weight (Approx.):
Weight (Approx.):
52 g
8,469 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
