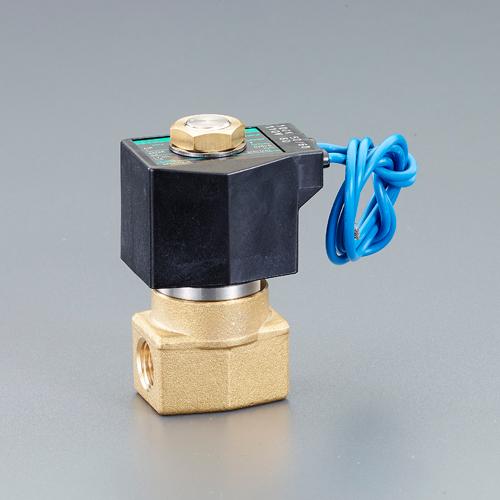

ESCO 2-Way Solenoid Valve A100V・Rc1/4”(3.00mm) EA153HA-7
JAN
4550061517697
ASIN
B08T9YTKSL
Maker
Model No.
EA153HA-7
Color
Size
Description
Rated Voltage: AC100V Fluid: Air, Water, Kerosene, Oil (up to 60°C) Maximum Working Pressure: 2MPa Ambient Temperature: -20 to 60°C Fluid Temperature: -10 to 60°C (no freezing) Pressure resistance: 8MPa (water pressure)
Heat resistance class: Class 130 (B) Valve structure: Pilot-operated poppet structure Diaphragm drive Material: Body: Bronze Seal: Nitrile rubber
Connection size: Rc1/2 Orifice diameter (Φmm): 15 Weight (g): 1200
Switching direction: 2-way AD11 Series
Brand Name: Esco
Material: Body: Bronze Seal: Nitrile Rubber
Rated Voltage: AC100V Usable Fluids: Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C) Maximum Working Pressure: 5MPa
Ambient Temperature: -20~60°C Fluid Temperature: -10~60°C (No freezing) Pressure Resistance: 25MPa (Water pressure)
Heat Resistance Class: Class 130(B) Valve Structure: Direct-acting poppet structure Material: Body: Bronze Seal: Nitrile rubber
Connection Size: Rc1/4 Orifice Diameter (Φmm): 3.0 Weight (g): 350
Switching Direction: 2-way AB31･41 Series
4550061517697
ESCO 2-way Solenoid Valve A100V・Rc1/4”(3.00mm) EA153HA-7
(text created at , 2025-07-01)
Heat resistance class: Class 130 (B) Valve structure: Pilot-operated poppet structure Diaphragm drive Material: Body: Bronze Seal: Nitrile rubber
Connection size: Rc1/2 Orifice diameter (Φmm): 15 Weight (g): 1200
Switching direction: 2-way AD11 Series
Brand Name: Esco
Material: Body: Bronze Seal: Nitrile Rubber
Rated Voltage: AC100V Usable Fluids: Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C) Maximum Working Pressure: 5MPa
Ambient Temperature: -20~60°C Fluid Temperature: -10~60°C (No freezing) Pressure Resistance: 25MPa (Water pressure)
Heat Resistance Class: Class 130(B) Valve Structure: Direct-acting poppet structure Material: Body: Bronze Seal: Nitrile rubber
Connection Size: Rc1/4 Orifice Diameter (Φmm): 3.0 Weight (g): 350
Switching Direction: 2-way AB31･41 Series
4550061517697
ESCO 2-way Solenoid Valve A100V・Rc1/4”(3.00mm) EA153HA-7
(text created at , 2025-07-01)
Package
Size (Approx.):
Size (Approx.):
91x54x96 mm
Package
Weight (Approx.):
Weight (Approx.):
354 g
4,756 JPY (Including Tax)
Stock :
4
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
