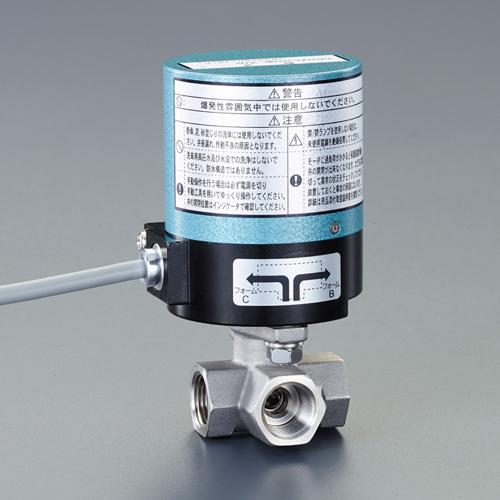

Rc1·1/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
JAN
4550061561300
ASIN
B08TB2RJW3
Maker
Model No.
EA470BH-112
Color
Size
Rc1·1/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
Description
Material: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Chrome Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 100mA
Maximum Power Consumption: 10W Screw Size (Rc): 1-1/4" Opening/Closing Time: 50Hz: Approx. 15 sec 60Hz: Approx. 13 sec
Fluid: Water, Oil, Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 9.8N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 32
Size: d: 18mm d1: Rc1-1/4" H: 132.5 mm H1: 49.5 mm L: 82.5 mm L1: 41.5 mm L2: 48 mm S1: 49 mm H5: 82 mm E1: 54.5 mm E2: 30 mm w1: 59 mm W2: 31.5 mm S: 5.5 mm Reduced Bore Type Ball Valve Three-Way Double Seat Brand Name: Esco
Material: Body: SCS14A
Material: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Cr Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 100mA
Maximum Power Consumption: 10W Thread Size (Rc): 1-1/4" Opening/Closing Time: 50Hz: Approx. 15 sec 60Hz: Approx. 13 sec
Fluid: Water/Oil/Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 9.8N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 32
Size: d: 18mm d1: Rc1-1/4" H: 132.5mm H1: 49.5mm L: 82.5mm L1: 41.5mm L2: 48mm S1: 49mm H5: 82mm E1: 54.5mm E2: 30mm w1: 59mm W2: 31.5mm S: 5.5mm Reduced Bore Type Ball Valve Three-Way Double Seat\ n4550061561300
B08TB2RJW3
Rc1･1/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
(text created at , 2025-11-13)
Maximum Power Consumption: 10W Screw Size (Rc): 1-1/4" Opening/Closing Time: 50Hz: Approx. 15 sec 60Hz: Approx. 13 sec
Fluid: Water, Oil, Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 9.8N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 32
Size: d: 18mm d1: Rc1-1/4" H: 132.5 mm H1: 49.5 mm L: 82.5 mm L1: 41.5 mm L2: 48 mm S1: 49 mm H5: 82 mm E1: 54.5 mm E2: 30 mm w1: 59 mm W2: 31.5 mm S: 5.5 mm Reduced Bore Type Ball Valve Three-Way Double Seat Brand Name: Esco
Material: Body: SCS14A
Material: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Cr Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 100mA
Maximum Power Consumption: 10W Thread Size (Rc): 1-1/4" Opening/Closing Time: 50Hz: Approx. 15 sec 60Hz: Approx. 13 sec
Fluid: Water/Oil/Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 9.8N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 32
Size: d: 18mm d1: Rc1-1/4" H: 132.5mm H1: 49.5mm L: 82.5mm L1: 41.5mm L2: 48mm S1: 49mm H5: 82mm E1: 54.5mm E2: 30mm w1: 59mm W2: 31.5mm S: 5.5mm Reduced Bore Type Ball Valve Three-Way Double Seat\ n4550061561300
B08TB2RJW3
Rc1･1/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
211x161x289 mm
Package
Weight (Approx.):
Weight (Approx.):
2172 g
72,923 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
