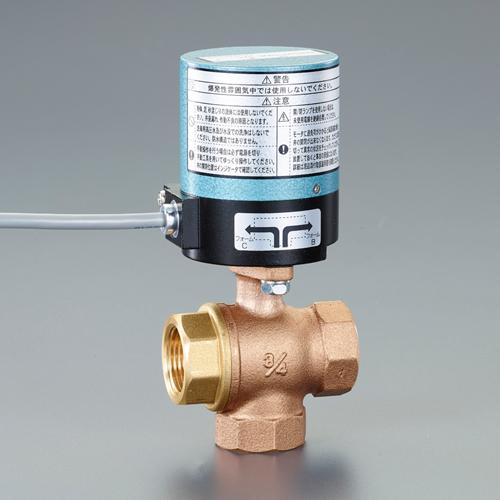

Rc1·1/4 Electric Ball Valve (Vertical Type/Bronze)
JAN
4550061562413
ASIN
B08TB7GV7Z
Maker
Model No.
EA470BG-312
Color
Size
d:25mm d1:Rc1・1/4 H:129.5mm H1:46.5mm L:89mm L1:44.5mm S1:50mm H2:82mm E1:54.5mm E2:30mm W1:59mm W2:
Description
Material: Body/Housing: CAC406, Cap: C3771, Stem: C6782BD + Cr plating, Disc/Ball: C3531 + Ni-Cr plating, Body Seat/Ball Seat: PTFE, O-Ring: FKM Power Supply: AC100V (50/60Hz) Screw Size (Rc): 1-1/4"
Opening/Closing Time: 50Hz: Approx. 30 sec 60Hz: Approx. 26 sec Rated Current: 100mA Maximum Power Consumption: 10W
Maximum Output Torque: 9.8N·m Function: 180° Forward/Reverse Rotation Protection Structure: IP56 Equivalent
Nominal Diameter (A Designation): 32 Size: d: 25mm d1: Rc 1-1/4" H: 129.5mm H1: 46.5mm L: 89mm L1: 44.5mm S1: 50mm H2: 82mm E1: 54.5mm E2: 30mm W1: 59mm W2: 31.5mm S: 5.5mm Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa
Fluid: Water/Oil/Air Reduced Bore Type Ball Valve
Brand Name: Esco
Material: Body/Housing: CAC406
4550061562413\ nB08TB7GV7Z
Rc1･1/4 Electric Ball Valve (Vertical Type/Bronze)
(text created at , 2025-11-12)
Opening/Closing Time: 50Hz: Approx. 30 sec 60Hz: Approx. 26 sec Rated Current: 100mA Maximum Power Consumption: 10W
Maximum Output Torque: 9.8N·m Function: 180° Forward/Reverse Rotation Protection Structure: IP56 Equivalent
Nominal Diameter (A Designation): 32 Size: d: 25mm d1: Rc 1-1/4" H: 129.5mm H1: 46.5mm L: 89mm L1: 44.5mm S1: 50mm H2: 82mm E1: 54.5mm E2: 30mm W1: 59mm W2: 31.5mm S: 5.5mm Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa
Fluid: Water/Oil/Air Reduced Bore Type Ball Valve
Brand Name: Esco
Material: Body/Housing: CAC406
4550061562413\ nB08TB7GV7Z
Rc1･1/4 Electric Ball Valve (Vertical Type/Bronze)
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
214x165x293 mm
Package
Weight (Approx.):
Weight (Approx.):
2180 g
