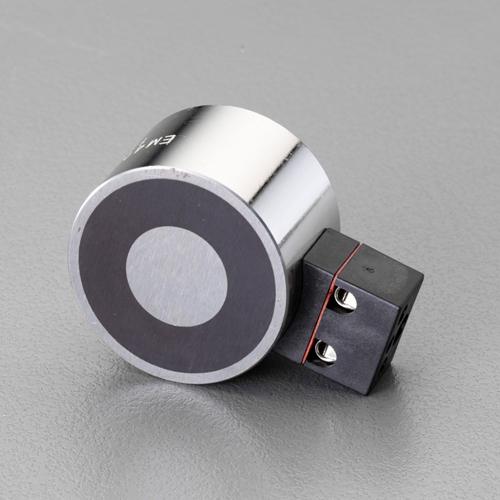

ESCO DC12V/φ 80mm/2000N Electromagnetic Magnet Holder EA984CM-36
JAN
4550061753842
ASIN
B09SHFCSK4
Maker
Model No.
EA984CM-36
Color
Size
Description
Esco Electromagnetic Magnet Holder EA984CM-37
▪️ Voltage/Current…DC12V/116mA
▪️ Maximum Holding Force…2000N
▪️ Size (mm)…φ80×38
▪️ Rear Screw Diameter…d1: M8 (Depth 12mm) \\ nd2: M6 (Depth 7mm)
▪️ Weight (g)…1203
▪️ IP Rating…20
▪️Backing Screw Diameter…d1: M8 (Depth 12mm)\
d2: M6 (Depth 7mm)\
▪️Weight (g)…1203\
▪️IP Rating…20\
▪️Material…Mild Steel (Nickel Plated)\
▪️Nickel Plated Finish\
▪️Electromagnet housing is a sturdy, glossy nickel-plated cylinder\
▪️This magnet adheres with 12VDC current.\
▪️Features mounting screw holes and rotation-stop screw holes on the back\
▪️For workpiece holding and transport, packaging machinery, office equipment, door locks, etc.\
▪️Combining with the separately sold armature plate (EA984CM-26) allows it to perform at its designed capacity\
▪️For holding workpieces in manufacturing processes. Brand Name: Esco Voltage/Current: DC12V/116mA Magnet with 12VDC current for adhesion. Maximum Holding Force: 2000N Size (mm): φ80×38 Back Screw Diameter: d1: M8 (Depth 12mm) d2: M6 (depth 7mm)
Weight (g)...1203
IP Rating...20
Material...Mild Steel (Nickel Plated)
Nickel Plated Finish
The electromagnet's outer shell is a sturdy, glossy nickel-plated cylinder
4550061753842\ nB09SHFCSK4
ESCO DC12V/φ 80mm/2000N Electromagnetic Magnet Holder EA984CM-36
(text created at , 2026-01-16)
▪️ Voltage/Current…DC12V/116mA
▪️ Maximum Holding Force…2000N
▪️ Size (mm)…φ80×38
▪️ Rear Screw Diameter…d1: M8 (Depth 12mm) \\ nd2: M6 (Depth 7mm)
▪️ Weight (g)…1203
▪️ IP Rating…20
▪️Backing Screw Diameter…d1: M8 (Depth 12mm)\
d2: M6 (Depth 7mm)\
▪️Weight (g)…1203\
▪️IP Rating…20\
▪️Material…Mild Steel (Nickel Plated)\
▪️Nickel Plated Finish\
▪️Electromagnet housing is a sturdy, glossy nickel-plated cylinder\
▪️This magnet adheres with 12VDC current.\
▪️Features mounting screw holes and rotation-stop screw holes on the back\
▪️For workpiece holding and transport, packaging machinery, office equipment, door locks, etc.\
▪️Combining with the separately sold armature plate (EA984CM-26) allows it to perform at its designed capacity\
▪️For holding workpieces in manufacturing processes. Brand Name: Esco Voltage/Current: DC12V/116mA Magnet with 12VDC current for adhesion. Maximum Holding Force: 2000N Size (mm): φ80×38 Back Screw Diameter: d1: M8 (Depth 12mm) d2: M6 (depth 7mm)
Weight (g)...1203
IP Rating...20
Material...Mild Steel (Nickel Plated)
Nickel Plated Finish
The electromagnet's outer shell is a sturdy, glossy nickel-plated cylinder
4550061753842\ nB09SHFCSK4
ESCO DC12V/φ 80mm/2000N Electromagnetic Magnet Holder EA984CM-36
(text created at , 2026-01-16)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
27,516 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
