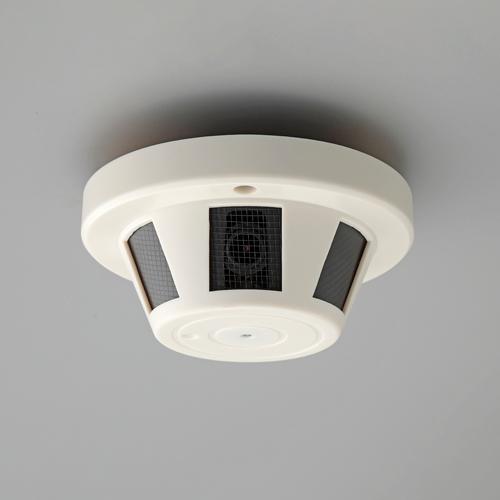

Esco 5.12 Megapixel Surveillance Camera (with Smoke Sensor and Microphone) EA864CD-625
JAN
4550061899021
ASIN
B0CCVKRY9V
Maker
Model No.
EA864CD-625
Color
Size
φ126 × 51.5 (H) mm
Description
Esco Security Camera - Smoke Detection Sensor Type - EA864CD-625
▪️Manufacturer…NSK ▪️Model Number…NS-AH5M041C ▪️Field of View…Horizontal Angle: 78° Vertical Angle: 44° ▪️Effective Pixels…5.0 Megapixels
▪️Image Sensor…1/2.5" SONY 5.1M CMOS Sensor
▪️Power Supply…DC12V
▪️Camera Size…φ126×51.5(H)mm
▪️Camera Weight…172g ▪️Accessories…AC Adapter, Mounting Bracket
▪️Scanning Method…Progressive Scan
▪️Recording Media…AHD Recorder (EA864CD-231) sold separately ▪️Video Output…AHD Output: 1944P(20/12.5), 1440P(30/25/15), 1080P(30/25) CVBS Output: 1.0vp-p/75Ω, BNC （※Video output switching is set via the OSD menu） ▪️Audio Output…2.0Vp-p/50Ω, RCA
▪️Minimum Illumination…0.05Lux/F1.2
▪️Day & Night…Color/Black & White/Auto/External Selection, IR Cut Filter
▪️Electronic Sensitivity Boost…Auto (Selectable from ×2 to ×30)/OFF
▪️D-WDR…ON/OFF Selectable
▪️UTC Control…Supported (DVR) ▪️Power Consumption…Typical 70mA (MAX 90mA) ▪️Operating Temp/Humidity Range…-10℃~＋50℃ /80% RH or below ▪️Compatible Video Recorders…EA864CD-231, -201E ▪️Microphone…2.0vp-p/50Ω, RCA ▪️For Indoor Use Only ▪️AHD Standard
Brand Name: Esco
AC Adapter, Mounting Bracket
Product Code: EA864CD-625
Quantity: 1 Unit
4550061899021\ nB0CCVKRY9V
Esco 5.12 Megapixel Surveillance Camera (with Smoke Sensor and Microphone) EA864CD-625
(text created at , 2025-11-12)
▪️Manufacturer…NSK ▪️Model Number…NS-AH5M041C ▪️Field of View…Horizontal Angle: 78° Vertical Angle: 44° ▪️Effective Pixels…5.0 Megapixels
▪️Image Sensor…1/2.5" SONY 5.1M CMOS Sensor
▪️Power Supply…DC12V
▪️Camera Size…φ126×51.5(H)mm
▪️Camera Weight…172g ▪️Accessories…AC Adapter, Mounting Bracket
▪️Scanning Method…Progressive Scan
▪️Recording Media…AHD Recorder (EA864CD-231) sold separately ▪️Video Output…AHD Output: 1944P(20/12.5), 1440P(30/25/15), 1080P(30/25) CVBS Output: 1.0vp-p/75Ω, BNC （※Video output switching is set via the OSD menu） ▪️Audio Output…2.0Vp-p/50Ω, RCA
▪️Minimum Illumination…0.05Lux/F1.2
▪️Day & Night…Color/Black & White/Auto/External Selection, IR Cut Filter
▪️Electronic Sensitivity Boost…Auto (Selectable from ×2 to ×30)/OFF
▪️D-WDR…ON/OFF Selectable
▪️UTC Control…Supported (DVR) ▪️Power Consumption…Typical 70mA (MAX 90mA) ▪️Operating Temp/Humidity Range…-10℃~＋50℃ /80% RH or below ▪️Compatible Video Recorders…EA864CD-231, -201E ▪️Microphone…2.0vp-p/50Ω, RCA ▪️For Indoor Use Only ▪️AHD Standard
Brand Name: Esco
AC Adapter, Mounting Bracket
Product Code: EA864CD-625
Quantity: 1 Unit
4550061899021\ nB0CCVKRY9V
Esco 5.12 Megapixel Surveillance Camera (with Smoke Sensor and Microphone) EA864CD-625
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
133x97x134 mm
Package
Weight (Approx.):
Weight (Approx.):
364 g
36,398 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
