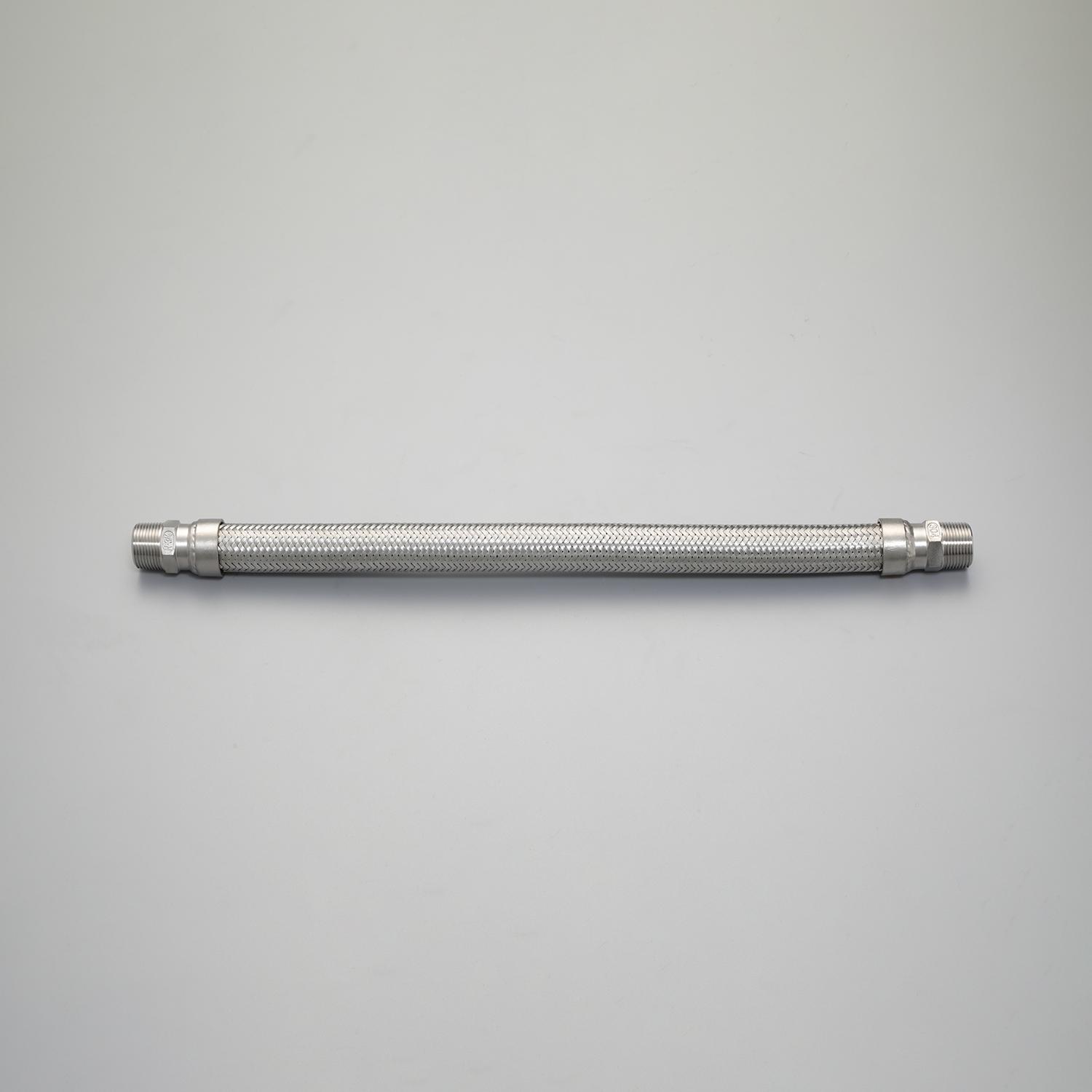

R3/4" x 500mm Flexible Tube (Steel Nipple/Welded)
JAN
4550061906415
ASIN
B0BWR5K5B6
Maker
Model No.
EA469EM-66
Color
Size
R 3/8"
Description
Brand Name: Esco
Nominal Diameter (A designation): 20
Thread Size (R): 3/4"
Flange Diameter (mm): 32
Overall Length (mm): 500
Material: Tube/SUS304 Blade/SUS304 Blade Retaining Ring/SUS304 Male Nipple/Carbon Steel (FCMB)
Working Pressure: 1.0MPa
Applicable Fluids: Water, Oil, Air, Steam
Operating Temperature: -10 to 200°C
Pipe Misalignment Compensation, Displacement Absorption, Vibration Damping, Motion Compensation
This flexible type facilitates installation in locations where pipe maintenance is difficult.
4550061906415
“R3/4” “x500mm Flexible Tube (Iron Nipple/Welded)”
(text created at , 2025-05-09)
Nominal Diameter (A designation): 20
Thread Size (R): 3/4"
Flange Diameter (mm): 32
Overall Length (mm): 500
Material: Tube/SUS304 Blade/SUS304 Blade Retaining Ring/SUS304 Male Nipple/Carbon Steel (FCMB)
Working Pressure: 1.0MPa
Applicable Fluids: Water, Oil, Air, Steam
Operating Temperature: -10 to 200°C
Pipe Misalignment Compensation, Displacement Absorption, Vibration Damping, Motion Compensation
This flexible type facilitates installation in locations where pipe maintenance is difficult.
4550061906415
“R3/4” “x500mm Flexible Tube (Iron Nipple/Welded)”
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
6,617 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
