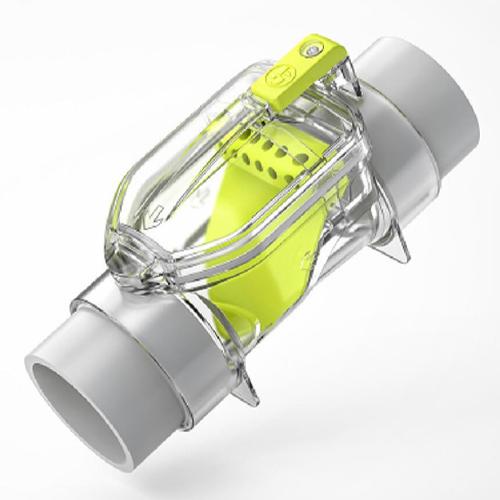

Air Cut Valve, Vertical/Horizontal Pull Compatible, 20/25/30A EA455BC-0
JAN
4550061943922
ASIN
B0BWR3P27D
Maker
Model No.
EA455BC-0
Color
Size
Description
ESCO Air Cut Valve - Vertical/Horizontal Dual-Use - 20A/25A/30A - EA455BC-0
Features & Tagline
・Special valve structure blocks air and insects during both vertical and horizontal drainage for smooth operation.
・Clear body allows easy inspection.
・Maintenance possible with lid removed. Specifications
・Applicable pipe sizes: 20A, 25A, 30A
・Overall length: 100mm
・Adapter inner diameter: φ26mm, φ32mm
・Material: PET resin
・Heat resistance: 100℃
・Applications: Drain for air conditioners (indoor units), drain for air handling units, drain for refrigerators/freezers, drain for electric water heaters, etc.
・High odor and insect resistance due to high airtightness
・Improved installability due to V-shaped design
・Vertical/horizontal dual-purpose design
・20A, 25A, 30A sizes available
・Model: EA455BC-0 freezer drainage, electric water heater drainage, etc.
・High airtightness provides strong odor and insect prevention
・V-shaped design improves installation ease
・Suitable for both vertical and horizontal installation
・Resin construction offers excellent chemical resistance, weather resistance, and heat resistance
・Suitable for outdoor installation
※For business use only※
Brand Name: Esco
Material: PET resin
Quantity: 1 piece
4550061943922
Air Cut Valve, Vertical/Horizontal Installation Compatible, 20/25/30A EA455BC-0
(text created at , 2025-08-11)
Features & Tagline
・Special valve structure blocks air and insects during both vertical and horizontal drainage for smooth operation.
・Clear body allows easy inspection.
・Maintenance possible with lid removed. Specifications
・Applicable pipe sizes: 20A, 25A, 30A
・Overall length: 100mm
・Adapter inner diameter: φ26mm, φ32mm
・Material: PET resin
・Heat resistance: 100℃
・Applications: Drain for air conditioners (indoor units), drain for air handling units, drain for refrigerators/freezers, drain for electric water heaters, etc.
・High odor and insect resistance due to high airtightness
・Improved installability due to V-shaped design
・Vertical/horizontal dual-purpose design
・20A, 25A, 30A sizes available
・Model: EA455BC-0 freezer drainage, electric water heater drainage, etc.
・High airtightness provides strong odor and insect prevention
・V-shaped design improves installation ease
・Suitable for both vertical and horizontal installation
・Resin construction offers excellent chemical resistance, weather resistance, and heat resistance
・Suitable for outdoor installation
※For business use only※
Brand Name: Esco
Material: PET resin
Quantity: 1 piece
4550061943922
Air Cut Valve, Vertical/Horizontal Installation Compatible, 20/25/30A EA455BC-0
(text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
79x61x128 mm
Package
Weight (Approx.):
Weight (Approx.):
170 g
10,075 JPY (Including Tax)
Stock :
12
Scheduled Shipping:
2026-07-14
Quantity :
