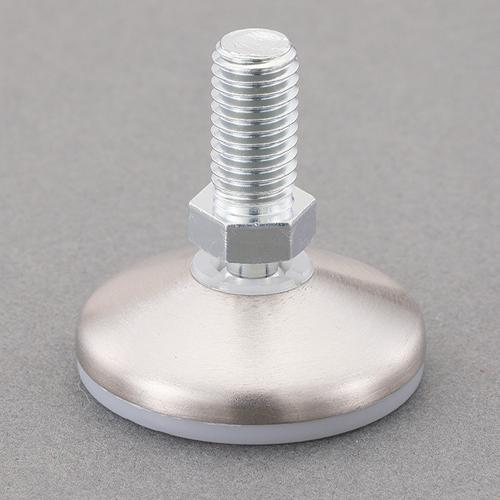

φ30mm / M8x19 / 110kg Adjustable Bolt (Swivel)

4550061951927

B0BWR278SF

EA949HA-2

Base diameter φ30 Threaded section M8×19 Overall height 37.5

ESCO-Adjustor Bolt-φ30mm-110kg-EA949HA-2

▪️Size: Base φ30, Threaded Section M8×19, Overall Height 37.5
▪️Material: Body / Stainless Steel SUS304 (Hairline Finish), Base / Polyamide PA, Threaded Section / Steel (Colored Chromate Finish)
▪️Base Diameter (mm): 30
▪️Screw: M8×19
▪️Load Capacity (kg): 110
▪️Base Height: 11.2
▪️Overall Height: 37.5mm
▪️Swivel Mechanism (approx. 30°)
▪️The approx. 30° swivel mechanism keeps the body vertical even on sloped floors.
※※For business use only※※
Brand Name: Esco
Material: Alloy Steel
Size: Base φ30, Screw M8×19, Overall Height 37.5
Material: Body / Stainless Steel SUS304 (Hairline Finish), Base / Polyamide PA, Screw / Steel (Colored Chromate)
Base Diameter (mm): 30
Screw: M8×19
Load Capacity (kg): 110
Base Height: 11.2
Total Height: 37.5mm
Swivel Mechanism (approx. 30°)
The built-in swivel mechanism (approx. 30°) keeps the main body vertical even on sloped floors.
4550061951927
φ30mm／M8x19／110kg Adjuster Bolt (Tilting)
