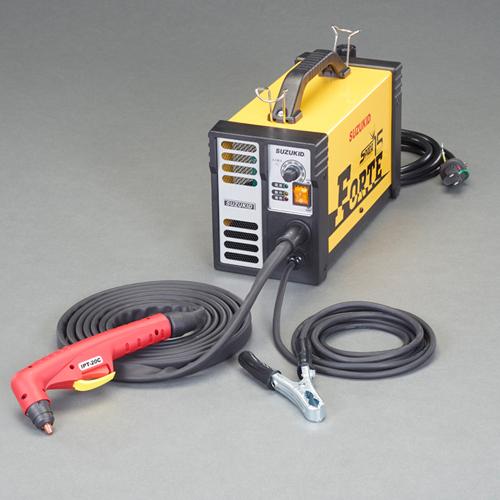

ESCO Air Plasma Cutter AC100V EA315SG-2

4550061952931

B0BWR3G9ZH

EA315SG-2

151 (W) × 471 (W) × 251 (H) mm

Esco Air Plasma Cutter - AC100V - EA315SG-2
▪️ Input Power: AC100V (Single-phase)
▪️ Duty Cycle: 40%
▪️ Cutting Thickness: Steel / 4.0mm, Stainless Steel / 3.0mm, Aluminum / 2.0mm
▪️ Output Current: 15A
▪️ Frequency: 50/60Hz
▪️ Input: 2.3kVA
▪️ Unit Dimensions: 151 (W) × 471 (H) × 200 (D) mm
▪️Output Current: 15A\
▪️Frequency: 50/60Hz\
▪️Input: 2.3kVA\
▪️Unit Dimensions: 151 (W) × 471 (D) × 251 (H) mm\
▪️Weight: 8.3kg\

▪️Required Air Pressure: 0.35~0.45MPa\
▪️Air Flow Rate: 50L/min\
▪️Cable Length: Torch/4m, Ground/3m, Power/3m\
▪️Accessories: Torch Cable/4m, Ground Cable/3m, Power Cable/3m, 2P-100V Adapter ×1, Electrode ×1, Tip ×1, Spanner ×1, 100V Plug (Grounded 2P-125V-15A) ×1\
▪️Output Adjustment Range: 7~15A\
▪️Start Method: Pilot Arc\
▪️When using 100V 23A power supply, achieves good cutting up to 4.0mm mild steel (max)\
▪️Ultra-lightweight body at only 8.3kg, extremely portable and convenient to carry\
▪️Equipped with overload prevention function\
▪️Delivers cutting power suitable for professionals, compatible with various metals.\
▪️Features “PFC function” for efficient operation, “pilot arc” for easy starting, and a “safety torch” with trigger cover. \
※※For business use only※※
Brand Name: Esco
Input Power: AC100V (Single-phase)
Duty Cycle: 40%
Cutting Capacity: Steel／4.0mm Stainless Steel／3.0mm Aluminum／2.0mm\ nOutput Current: 15A
Frequency: 50/60Hz
Input: 2.3kVA
Dimensions: 151 (W) × 471 (D) × 251 (H) mm
Weight: 8.3kg\ nRequired Air Pressure: 0.35–0.45MPa
Air Flow Rate: 50L/min
4550061952931
B0BWR3G9ZH
ESCO Air Plasma Cutter AC100V EA315SG-2
