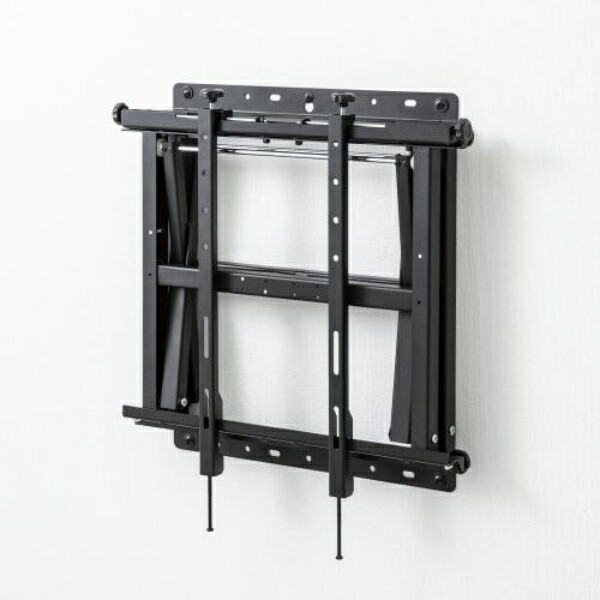

Sanwa Supply Push-Type Wall Mount Bracket (Compatible with 32- to 65-inch Models) CR-PLKG16BK

4969887195949

B0BXDHQD24

CR-PLKG16BK

Sanwa Supply-Sanwa-Supply-CR-PLKG16BK-Push-Type Wall Mount Bracket (Compatible with 32-65" Models)
▪️ This is a display bracket for flush-mounted wall installation.\
▪️ The mounting hole positions are compatible with VESA standards 100×100 to 600×400mm.\

▪️The entire bracket features a push-type mechanism: pushing it inward unlocks the mechanism, allowing it to slide forward.\
▪️Extremely convenient for wall-embedded installations and multi-display maintenance.\
▪️Includes levers for fine adjustments in all directions (front/back, left/right, up/down).\
▪️Supports installation of displays ranging from approximately 32 to 65 inches.\
※Installation of this product requires specialized skills. Always hire a professional installer. Do not attempt installation yourself. 【For Contractors】\
※Please install only after thoroughly understanding the instruction manual. \
※For customer safety, professionally assess the wall surface, determine the optimal mounting method with sufficient strength, and install accordingly.\
※Work must be performed by at least two adults.\
※Ensure all bolts and fasteners specified in the manual are securely installed.\
※Sanwa Supply assumes no responsibility for accidents or damage resulting from improper installation or handling.\


■Color: Black\


■Size: W640 × D95–300 × H615 mm\


■Weight: 12.3 kg\


■Packaging: 1 package / 556 × 575 × 180 mm, 13.5 kg\


■Shipping Format: Knockdown assembly (customer assembly required)\


■Material: Steel (epoxy resin powder coating)\


■Included Spacer Size: 12.4mm\


■Set Contents: Display Mounting Screws (M4×16, M4×35, M5×16, M5×35, M6×16, M6×35, M8×16, M8×35 - 6 each, *including 2 spares each), Spacers ×6 (t=12mm), Leveling tool\
※If bolts cannot be fully tightened, or only turn slightly, indicating an improper fit, exercise extreme caution regarding strength and prepare commercially available appropriate bolts.\


■Total Load Capacity: 50kg
Brand Name: Sanwa Supply
This is a recessed wall-mount display bracket.
The mounting hole positions are compatible with VESA standards 100×100 to 600×400mm.
The entire bracket features a push-type mechanism: pushing it inward unlocks it and pulls it forward.
This is extremely convenient for wall embedding or multi-display maintenance.
It features a lever for fine adjustments in all directions: front/back, left/right, up/down.
4969887195949
B0BXDHQD24
Sanwa Supply Push-Type Wall Mount Bracket (Compatible with 32-65" Models) CR-PLKG16BK
(text created at , 2025-11-13)

556x180x575 mm

13500 g
