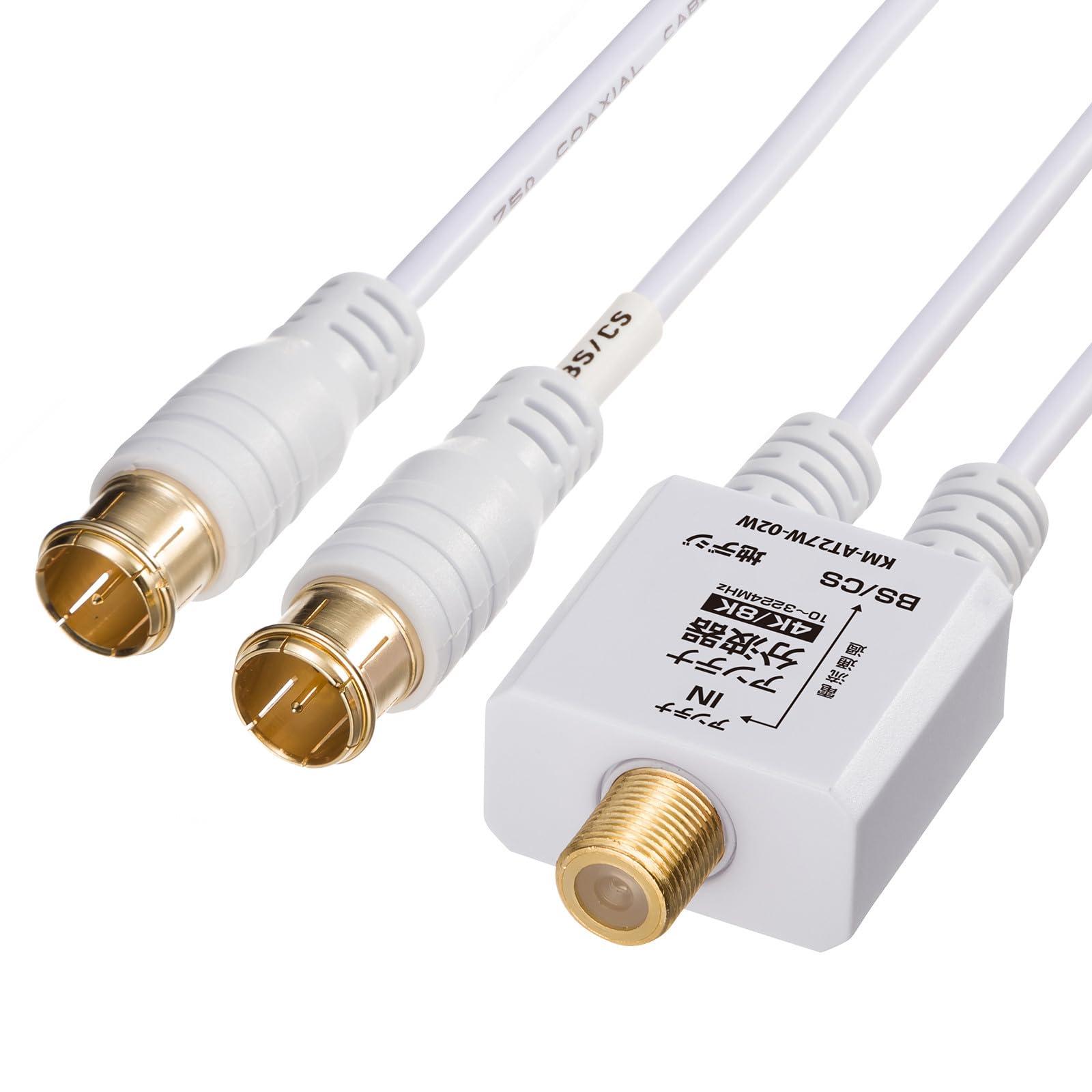

Sanwa Supply Antenna Splitter Output Cable 0.2m KM-AT27W-02W
JAN
4969887771525
ASIN
B0DFWJS19P
Maker
Model No.
KM-AT27W-02W
Color
Size
Description
Sanwa Supply - Antenna Splitter - Output Cable - 0-2m - KM-AT27W-02W
▪️ Efficiently separates terrestrial digital (UHF) and satellite (BS/CS) signals, allowing you to watch terrestrial digital, BS, and CS broadcasts on a single TV when you want to view them separately.
▪️ Supports 4K/8K broadcasting in addition to conventional terrestrial, BS, and CS broadcasts.
▪️ Features an integrated cable design. The splitter body and input/output cables are constructed as a single unit, reducing connection loss compared to separate designs.
▪️ Flexible and slim cable. Uses flexible, easy-to-route S-2.5C-FB standard coaxial cable.
▪️ Can supply power to BS antennas. The BS/CS terminals are current-passing, enabling power supply from devices like TVs or recorders to the antenna side.
■Cable Length: 0.2m (SR interval)
■Connector Type: F-type jack - F-type plug (plug-in) ×2 Cable/F-type plug (plug-in)
■Cable Outer Diameter: 3.5mm
■Type: Coaxial
■ Coaxial Standard: 2.5C
■ Product Size: Housing/Approx. W28.3 × D14.5 × H44.5mm (excluding protrusions and cable)
■ Weight: Approx. 54g (including cable)
■ Input Frequency: 47~3224MHz
■Output Frequency: U/V Output Terminal 47~862MHz, BS/CS Output Terminal 950~3224MHz
■Cable Specification: S-2.5C-FB
■Connector Specification: F-Type
■Connector Shape: Straight/Screw-Type (Both Terminals Gold-Plated)
■Impedance: 75Ω
Brand Name: Sanwa Supply
When you want to watch terrestrial digital broadcasts and BS/CS broadcasts separately, this splitter efficiently separates terrestrial digital (UHF) and satellite waves (BS/CS), allowing you to watch terrestrial digital, BS, and CS on a single TV.
In addition to conventional terrestrial digital, BS, and CS broadcasts, it also supports 4K/8K broadcasts.
Integrated cable design. The splitter body and input/output cables are integrated, reducing connection loss compared to separate designs.
Flexible, slim cable. Uses flexible, easy-to-route S-2.5C-FB standard coaxial cable.
BS antenna power supply capable. The BS/CS terminals are current-passing, allowing power to be supplied from devices like TVs or recorders to the antenna side.
4969887771525
Sanwa Supply Antenna Splitter Output Cable 0.2m KM-AT27W-02W
(text created at , 2025-05-10)
▪️ Efficiently separates terrestrial digital (UHF) and satellite (BS/CS) signals, allowing you to watch terrestrial digital, BS, and CS broadcasts on a single TV when you want to view them separately.
▪️ Supports 4K/8K broadcasting in addition to conventional terrestrial, BS, and CS broadcasts.
▪️ Features an integrated cable design. The splitter body and input/output cables are constructed as a single unit, reducing connection loss compared to separate designs.
▪️ Flexible and slim cable. Uses flexible, easy-to-route S-2.5C-FB standard coaxial cable.
▪️ Can supply power to BS antennas. The BS/CS terminals are current-passing, enabling power supply from devices like TVs or recorders to the antenna side.
■Cable Length: 0.2m (SR interval)
■Connector Type: F-type jack - F-type plug (plug-in) ×2 Cable/F-type plug (plug-in)
■Cable Outer Diameter: 3.5mm
■Type: Coaxial
■ Coaxial Standard: 2.5C
■ Product Size: Housing/Approx. W28.3 × D14.5 × H44.5mm (excluding protrusions and cable)
■ Weight: Approx. 54g (including cable)
■ Input Frequency: 47~3224MHz
■Output Frequency: U/V Output Terminal 47~862MHz, BS/CS Output Terminal 950~3224MHz
■Cable Specification: S-2.5C-FB
■Connector Specification: F-Type
■Connector Shape: Straight/Screw-Type (Both Terminals Gold-Plated)
■Impedance: 75Ω
Brand Name: Sanwa Supply
When you want to watch terrestrial digital broadcasts and BS/CS broadcasts separately, this splitter efficiently separates terrestrial digital (UHF) and satellite waves (BS/CS), allowing you to watch terrestrial digital, BS, and CS on a single TV.
In addition to conventional terrestrial digital, BS, and CS broadcasts, it also supports 4K/8K broadcasts.
Integrated cable design. The splitter body and input/output cables are integrated, reducing connection loss compared to separate designs.
Flexible, slim cable. Uses flexible, easy-to-route S-2.5C-FB standard coaxial cable.
BS antenna power supply capable. The BS/CS terminals are current-passing, allowing power to be supplied from devices like TVs or recorders to the antenna side.
4969887771525
Sanwa Supply Antenna Splitter Output Cable 0.2m KM-AT27W-02W
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
120x17x180 mm
Package
Weight (Approx.):
Weight (Approx.):
58 g
1,870 JPY (Including Tax)
