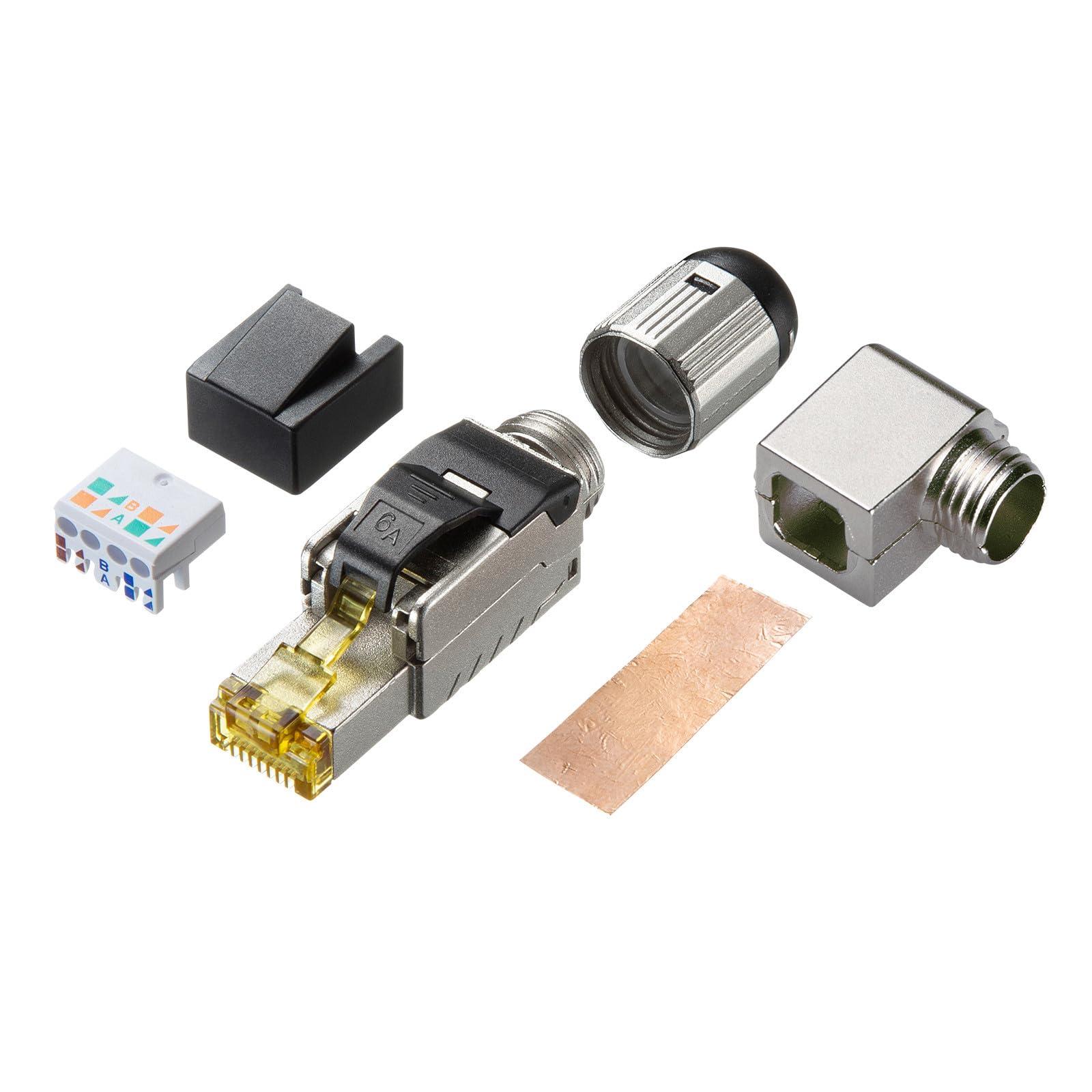

Sanwa Supply DIY RJ-45 Connector, L-Shaped, Category 6A, Crimping Tool Not Required, Silver ADT-6ARJFSL

4969887773710

B0F2HLPQ2R

ADT-6ARJFSL

Sanwa Supply-Sanwa-Supply-ADT-6ARJFSL-DIY RJ-45 Connector (L-Shaped, Category 6A, Crimping Tool Not Required)

▪️ This RJ-45 shielded connector is for DIY Category 6A LAN cables supporting 10 Gigabit Ethernet.
▪️ Cable processing requires no crimping tool and allows for repeated use.
▪️ Full metal die-cast construction ensures complete EMI countermeasures while maintaining high durability and reliability.
▪️ Full metal die-cast construction provides complete EMI protection while maintaining high durability and reliability.
▪️ Supports Power Line Communication (PLC) networks and is compatible with PoE af, at, bt, and UPoE.
▪️ Compatible with solid or stranded wires, cable outer diameter 6.0mm~7.5mm, 23~26 AWG.

■Connector:
Type/RJ-45 shielded connector
Structure/STP shielded structure


■Compatible Cable:
Conductor/Solid or stranded
Core/23 AWG to 26 AWG
OD/6.0mm to 7.5mm


■Category: CAT6A


■Standard Name: 10GBASE-T


■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant


■Body Structure: Metal die-cast construction


■Compatible Cables: KB-T6AAD-CB100BK※, KB-T6AAD-CB300BK※, KB-T6A-CB100BL, KB-T6A-CB100W, KB-T6A-CB300BL, KB-T6A-CB300W (Category 6A LAN cables only)


■Compatible Stripping Tools: LAN-TL15, LAN-TL9


■Dimensions: W13.8 × D63.5 × H35.92 mm


■Weight: 29.5 g
Brand Name: Sanwa Supply
This RJ-45 shielded connector is for building your own Category 6A LAN cables compatible with 10 Gigabit Ethernet.
No crimping tool required for cable processing; can be reused multiple times.
Full metal die-cast construction provides complete EMI protection while maintaining high durability and reliability.
Supports Powerline Networks (PoE) and is compatible with PoE af, at, bt, and UPoE.
Accommodates cable outer diameters of 6.0mm to 7.5mm and solid or stranded wires conforming to 23 to 26 AWG standards.
4969887773710
Sanwa Supply DIY RJ-45 Connector L-Shaped Category 6A Crimping Tool Not Required Silver ADT-6ARJFSL
(text created at , 2025-07-01)

86x16x86 mm

30 g
