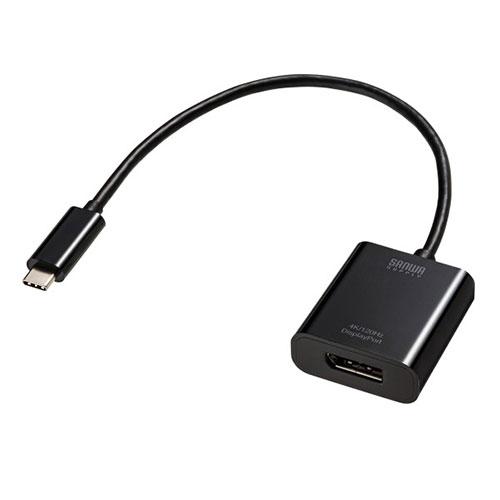

Sanwa Supply USB Type-C to DisplayPort Adapter 4K/120Hz/HDR Support AD-ALCDP02

4969887774717

B0FXX57W1S

AD-ALCDP02

Sanwa Supply - C-DisplayPort Conversion Adapter (4K-120Hz-HDR Supported) - AD-ALCDP02
▪️Allows video and audio output from PCs or tablets equipped with USB Type-C (only Type-C ports supporting video output) to displays or TVs with DisplayPort input terminals.\

▪️Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, enabling easy setup of multi-display environments (Mirror Mode/Extended Mode) without software installation.\
▪️Supports resolutions up to 4K (3840×2160)/120Hz, outputting beautiful, high-definition DisplayPort signals.\
▪️ Supports high-brightness HDR (High Dynamic Range) video and is compatible with HDCP 1.4/2.2/2.3.\
▪️ The 20cm cable length allows for easy connection and handling. 【Please Confirm Before Purchase】\
※ Compatible with PCs equipped with a USB Type-C port that supports DisplayPort Alternate Mode.\
※ Not compatible with Nintendo Switch/Nintendo Switch 2. 【 USB 】\


■Interface Standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant\


■Connector Type (PC Connection Side): USB Type-C\


■Power: Bus-powered\
【 Video Output Port 】\


■Port Type: DisplayPort Female\


■Maximum Supported Resolution: 4K/120Hz\


■Supported Resolutions: Maximum display resolution 4K/120Hz\
※Supports resolutions below the maximum display resolution, such as 4K/60Hz and 1080p/60Hz, not just 4K/120Hz.\
※Your PC, projector, display, and connection cables must all support the same resolution.

■HDR Support: Supported\


■HDCP: HDCP 1.4, HDCP 2.2, HDCP 2.3\
【 Video Specifications 】\


■DisplayPort Standard: Ver. 1.2\
【 Common Specifications 】\


■Current Consumption: Max. 40mA\


■Shielding Method: Triple Shielding\


■Cable Length: 0.2m\\ n

■Cable Diameter: 4mm\
【 Common Specifications 】\


■Dimensions: Approx. W37 × D41.85 × H14.5mm (DisplayPort side)\


■Operating Temperature: 0 to 45°C\


■Storage Temperature: -10 to 70°C\


■Operating Humidity: 10 to 85% RH (No condensation)\


■Storage Humidity: 5–90% RH (non-condensing)
Brand Name: Sanwa Supply
Enables output of video and audio from PCs or tablets equipped with USB Type-C (only Type-C ports supporting video output) to displays or TVs with DisplayPort input ports.
Supports DisplayPort Alternate Mode for USB Type-C display expansion, enabling easy setup of multi-display environments (Mirror Mode/Extended Mode) without software installation.
Supports resolutions up to 4K (3840×2160)/120Hz, delivering beautiful, high-definition DisplayPort signals.
It supports high-brightness HDR (High Dynamic Range) video and is compatible with HDCP 1.4/2.2/2.3.
The 20cm cable length allows for easy connection and handling.

90x21x182 mm

50 g
