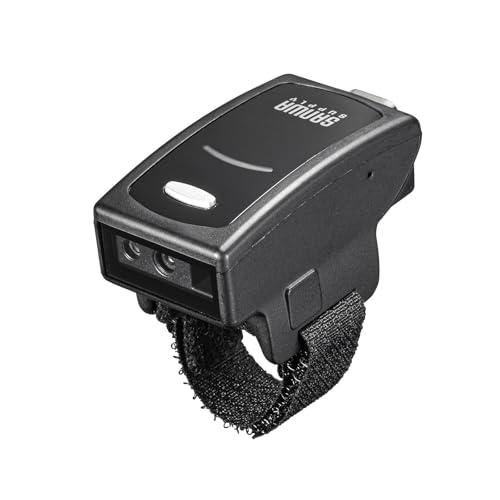

Sanwa Supply Bluetooth 2D Barcode Reader (Ring Type) BCR-BT2D5BK

4969887806227

B0D83DJX1T

BCR-BT2D5BK

Sanwa Supply-Sanwa-Supply-BCR-BT2D5BK-Bluetooth 2D Barcode Reader (Ring Type)
▪️ Ultra-compact and lightweight ring type for easy use. Worn on the finger, it remains comfortable even during extended use.\
▪️ Enables hands-free operation, boosting warehouse efficiency. Worn on the finger, it allows barcode scanning while keeping both hands free.\

▪️ Simply place it in the cradle to charge after use. Placing it in the dedicated cradle allows charging just by setting it down after work. Up to four cradles can be linked together.\
▪️ Can be worn on either finger. Scan buttons are on both sides, allowing use with your dominant hand.\
▪️ The touch-sensitive scan button enables easy scanning with just a light touch, no pressing required.\
▪️ Bluetooth connectivity allows connection to various devices. When connected to iOS devices, pressing the barcode reader button can bring up the keyboard.\
▪️ Capable of reading both 1D and 2D barcodes. It can read numerous codes commonly used in logistics, such as CODE39 (1D) and DataMatrix (2D). It can also read barcodes displayed on computer or smartphone screens.\


■Interface: USB HID\


■Communication Range: 10m (Class 2) *Varies depending on the usage environment.\


■Power Supply: Built-in Lithium Polymer Battery\


■Compliant Standard: Bluetooth 5.0\


■Memory: 2MB\


■PCS Value: 10%\


■Reading Depth:\
5mil CODE39/39-198mm\
13mil UPC/EAN/52-355mm\
15mil QR/30-250mm\
6.67mil PDF417/41-165mm\
10mil Data Matrix/35-163mm\


■Scan Speed: 60 frames/sec\


■Operating Time:\
Cycles/15 hours\
Charge Time/4.5 hours\


■Readable Codes (1D): JAN, EAN, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5 (ITF), Industrial 2 of 5, Code 39, Code 128, Matrix 2 of 5, ISSN, ISBN, Code 11, Code 32, MSI, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded\


■Readable Codes (2D): QR Code, Micro QR, PDF417, Data Matrix, MaxiCode, AztecCode, Micro PDF417\


■Japanese QR Code: Supported\


■Reading Method: CMOS\
640×480\


■Resolution 2D Code: 0.25mm\
10mil\


■Resolution 1D Code: 0.01mm\
4mil\


■Reading Angle:\
Pitch/55°\
Skew/55°\
Tilt/360°\


■Current Consumption (Operating): 210mA\


■Impact Resistance (Drop): 1.5m\


■Water/Dust Resistance: IP42\


■Contents: Main Unit, Charging Cable, Instruction Manual
Brand Name: Sanwa Supply
Ultra-compact and ultra-lightweight ring-type design for easy use. Worn on the finger, it remains comfortable even during extended use.

95x80x195 mm

282 g
