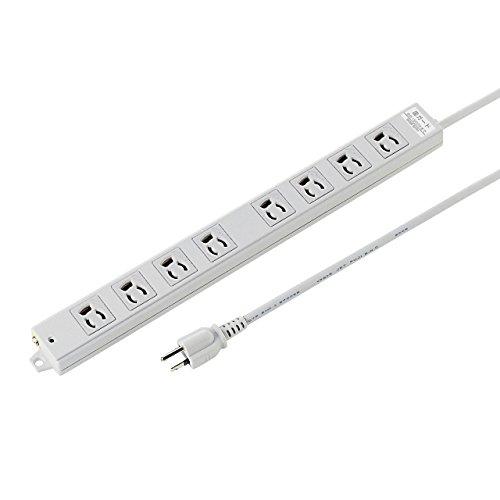

Sanwa Supply TAP-K8SP-3 Construction Site Surge Protector Tap with Locking Plugs, 3-Pole, 8 Outlets
JAN
4969887831502
ASIN
B003R4IRI8
Maker
Model No.
TAP-K8SP-3
Color
Size
Description
Sanwa Supply - TAP-K8SP-3 - Construction Site Surge Protector Tap - Locking Outlets - 8 Outlets
Product Features
▪️ Features surge protection. Protects equipment from damage caused by lightning surges. Surge protection is built into both the power line-to-power line and power-to-ground connections.
▪️ Features a lightning protection indicator lamp. Confirm whether the lightning protection is active.
▪️ Features a heat-resistant double-layered case.
▪️ Includes plugs with insulated caps, effective for preventing tracking fires.
▪️ Features non-detachable outlets that lock the plug in place.
▪️ Equipped with a magnet on the back, allowing temporary attachment to steel desks, etc. This makes maintenance easy and convenient.
▪️ An environmentally conscious product using lead-free solder.
▪️ Uses minimal waste, eco-friendly simple vinyl bag packaging.
▪️ Complies with the RoHS Directive.
■ Color: White
■ Rated Capacity: 15A・125V (up to 1500W)
■ Plug Specification: 3P (with insulated cap)
■Outlets: 3P (locking type) × 8
■Outlet Pitch: 40mm (center only 60mm)
■Power Cord Length: 3m
■Cord Type: Vinyl Cab Tyre Round Cord (VCTF)
■ Unit Dimensions: W419 × D43.5 × H26mm
■ Surge Capacity: Line-to-Line/1000A (8/20μs) Line-to-Ground/500A (8/20μs)
*Peak current value where the varistor voltage change rate is within ±10% after passing one surge current pulse each way.
■Rated Voltage: Line-to-Line/Max 1000V (100A) Line-to-Ground/Max 1500V (50A)
■Varistors Used: 240V + Current Fuse (Line-to-Line) 470V + Thermal Fuse (Line-to-Ground)
■Region of Use: Japan only. Not for use outside Japan.
■Certification: Complies with Electrical Appliance and Material Safety Law (PSE) technical standards
Important Notice (Disclaimer) > Must Read
▪️We cannot accommodate delivery time requests.▪️Do not use for purposes other than the product's intended use.▪️Avoid actions that may cause damage or rough handling.
Brand Name: Sanwa Supply
Features lightning surge protection. Protects equipment from damage caused by lightning surges. Surge protection is built into both the power line-to-power line and power line-to-ground connections.
Includes a lightning guard indicator light. Confirm whether the lightning guard is active.
Features a heat-resistant double-layered case.
Equipped with plugs featuring insulated caps, effective for preventing tracking fires.
The socket has a lockable plug to prevent accidental disconnection.
A magnet on the back allows temporary attachment to steel surfaces like desks. This makes maintenance easy and convenient.
An environmentally conscious product using lead-free solder.
Features minimal waste, eco-friendly simple vinyl bag packaging.
Complies with RoHS Directive.
Color: White
4969887831502
Sanwa Supply TAP-K8SP-3 Construction Site Surge Protector Tap with Locking Plugs, 3P, 8 Outlets
(text created at , 2025-05-10)
Product Features
▪️ Features surge protection. Protects equipment from damage caused by lightning surges. Surge protection is built into both the power line-to-power line and power-to-ground connections.
▪️ Features a lightning protection indicator lamp. Confirm whether the lightning protection is active.
▪️ Features a heat-resistant double-layered case.
▪️ Includes plugs with insulated caps, effective for preventing tracking fires.
▪️ Features non-detachable outlets that lock the plug in place.
▪️ Equipped with a magnet on the back, allowing temporary attachment to steel desks, etc. This makes maintenance easy and convenient.
▪️ An environmentally conscious product using lead-free solder.
▪️ Uses minimal waste, eco-friendly simple vinyl bag packaging.
▪️ Complies with the RoHS Directive.
■ Color: White
■ Rated Capacity: 15A・125V (up to 1500W)
■ Plug Specification: 3P (with insulated cap)
■Outlets: 3P (locking type) × 8
■Outlet Pitch: 40mm (center only 60mm)
■Power Cord Length: 3m
■Cord Type: Vinyl Cab Tyre Round Cord (VCTF)
■ Unit Dimensions: W419 × D43.5 × H26mm
■ Surge Capacity: Line-to-Line/1000A (8/20μs) Line-to-Ground/500A (8/20μs)
*Peak current value where the varistor voltage change rate is within ±10% after passing one surge current pulse each way.
■Rated Voltage: Line-to-Line/Max 1000V (100A) Line-to-Ground/Max 1500V (50A)
■Varistors Used: 240V + Current Fuse (Line-to-Line) 470V + Thermal Fuse (Line-to-Ground)
■Region of Use: Japan only. Not for use outside Japan.
■Certification: Complies with Electrical Appliance and Material Safety Law (PSE) technical standards
Important Notice (Disclaimer) > Must Read
▪️We cannot accommodate delivery time requests.▪️Do not use for purposes other than the product's intended use.▪️Avoid actions that may cause damage or rough handling.
Brand Name: Sanwa Supply
Features lightning surge protection. Protects equipment from damage caused by lightning surges. Surge protection is built into both the power line-to-power line and power line-to-ground connections.
Includes a lightning guard indicator light. Confirm whether the lightning guard is active.
Features a heat-resistant double-layered case.
Equipped with plugs featuring insulated caps, effective for preventing tracking fires.
The socket has a lockable plug to prevent accidental disconnection.
A magnet on the back allows temporary attachment to steel surfaces like desks. This makes maintenance easy and convenient.
An environmentally conscious product using lead-free solder.
Features minimal waste, eco-friendly simple vinyl bag packaging.
Complies with RoHS Directive.
Color: White
4969887831502
Sanwa Supply TAP-K8SP-3 Construction Site Surge Protector Tap with Locking Plugs, 3P, 8 Outlets
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
161x44x431 mm
Package
Weight (Approx.):
Weight (Approx.):
735 g
