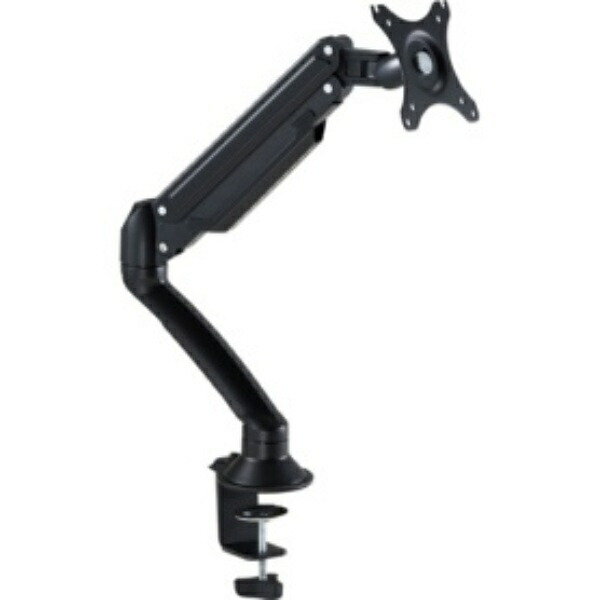

Kingjim Monitor Arm 1-Panel 3-Axis Type ARM130-BK Black
JAN
4971660960279
ASIN
B08Z77Q5PR
Maker
Model No.
680-2752
Color
Size
Description
King Jim - Monitor Arm - Single-Monitor 3-Axis Type - ARM130 - Black
Monitor Arm Single-Monitor 3-Axis Type ARM130
This monitor arm allows you to adjust your PC monitor to any angle or position.
Using a monitor arm raises your line of sight, helping improve posture,
which can alleviate physical discomfort.
Additionally, eliminating the base frees up desk space, helping to keep your workspace tidy.
Featuring a gas spring mechanism, it allows moving the monitor to your desired position with minimal effort.
■ Gas Spring Mechanism
The gas spring mechanism lets you move the monitor effortlessly to any position,
reducing eye strain and fatigue in the neck and back, while boosting work efficiency.
*The gas spring mechanism controls arm movement using the pressure of the gas it contains.
▪️Weight: Approx. 2.3kg
▪️Load Capacity: Approx. 9kg
▪️Compatible Standards: VESA 100mm/75mm
▪️Compatible Sizes: 17~30 inches
▪️Movement Range: Monitor tilt Up -85°/Down 15°, Joint axis rotation ±135°, Monitor bracket center axis rotation ±180°
▪️Compatible Table Tops: Thickness 20mm~60mm, Depth 108mm or more, Width 100mm or more
▪️Included Items:
Warranty/Instruction Manual, 10mm Socket Wrench, 1 Base Bracket, 1 Screw (M8×65)
1 Handle, 1 Handle Cover, 1 Spacer, 1 Retaining Plate
4 Screws (M4×12MM), 4 Screws (M5×12MM), Screw (M6×8mm) x2
Washer (Φ6.5×Φ13×1.8) x8, Hex wrench with driver (5×5mm) x1
※This product requires assembly
※Assembly must be performed by the customer
※Assembly must be performed by at least two people on a stable, flat surface
※Monitor is not included
Brand Name: Kingjim
Maximize your desk space. Features a gas spring mechanism. Effortlessly fine-tune monitor position with minimal force
Approx. 2.3kg, Approx. 9kg, VESA Standard 100mm/75mm, 17~30 inches
[Movement Range] Monitor tilt: Up -85° / Down 15°, Joint axis rotation: ±135°, Monitor bracket center axis rotation: ±180°
Thickness: 20mm~60mm, Depth: 108mm or more, Width: 100mm or more
Warranty/Instruction Manual, 10mm Socket Wrench x1, Base Bracket x1, Screw (M8×65) x1, Handle x1, Handle Cover x1, Spacer x1, Retaining Plate x1, Screws (M4×12MM) x4, Screws (M5×12MM) x4, Screws (M6×8mm) x2, Washers (Φ6.5×Φ13×1.8) x8, Hex wrench with driver (5×5mm) x1
4971660960279
Kingjim Monitor Arm 1-Panel 3-Axis Type ARM130-BK Black
(text created at , 2025-05-11)
Monitor Arm Single-Monitor 3-Axis Type ARM130
This monitor arm allows you to adjust your PC monitor to any angle or position.
Using a monitor arm raises your line of sight, helping improve posture,
which can alleviate physical discomfort.
Additionally, eliminating the base frees up desk space, helping to keep your workspace tidy.
Featuring a gas spring mechanism, it allows moving the monitor to your desired position with minimal effort.
■ Gas Spring Mechanism
The gas spring mechanism lets you move the monitor effortlessly to any position,
reducing eye strain and fatigue in the neck and back, while boosting work efficiency.
*The gas spring mechanism controls arm movement using the pressure of the gas it contains.
▪️Weight: Approx. 2.3kg
▪️Load Capacity: Approx. 9kg
▪️Compatible Standards: VESA 100mm/75mm
▪️Compatible Sizes: 17~30 inches
▪️Movement Range: Monitor tilt Up -85°/Down 15°, Joint axis rotation ±135°, Monitor bracket center axis rotation ±180°
▪️Compatible Table Tops: Thickness 20mm~60mm, Depth 108mm or more, Width 100mm or more
▪️Included Items:
Warranty/Instruction Manual, 10mm Socket Wrench, 1 Base Bracket, 1 Screw (M8×65)
1 Handle, 1 Handle Cover, 1 Spacer, 1 Retaining Plate
4 Screws (M4×12MM), 4 Screws (M5×12MM), Screw (M6×8mm) x2
Washer (Φ6.5×Φ13×1.8) x8, Hex wrench with driver (5×5mm) x1
※This product requires assembly
※Assembly must be performed by the customer
※Assembly must be performed by at least two people on a stable, flat surface
※Monitor is not included
Brand Name: Kingjim
Maximize your desk space. Features a gas spring mechanism. Effortlessly fine-tune monitor position with minimal force
Approx. 2.3kg, Approx. 9kg, VESA Standard 100mm/75mm, 17~30 inches
[Movement Range] Monitor tilt: Up -85° / Down 15°, Joint axis rotation: ±135°, Monitor bracket center axis rotation: ±180°
Thickness: 20mm~60mm, Depth: 108mm or more, Width: 100mm or more
Warranty/Instruction Manual, 10mm Socket Wrench x1, Base Bracket x1, Screw (M8×65) x1, Handle x1, Handle Cover x1, Spacer x1, Retaining Plate x1, Screws (M4×12MM) x4, Screws (M5×12MM) x4, Screws (M6×8mm) x2, Washers (Φ6.5×Φ13×1.8) x8, Hex wrench with driver (5×5mm) x1
4971660960279
Kingjim Monitor Arm 1-Panel 3-Axis Type ARM130-BK Black
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
291x110x374 mm
Package
Weight (Approx.):
Weight (Approx.):
2600 g
6,592 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
