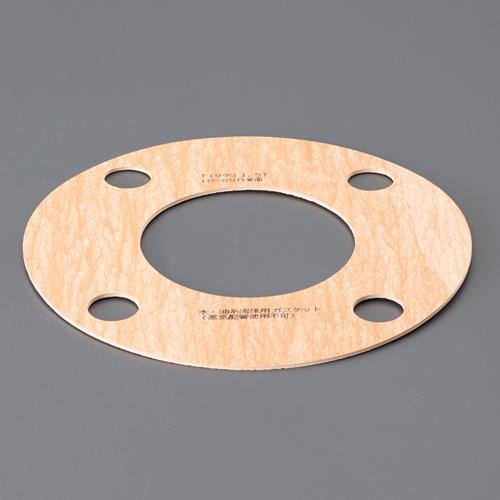

ESCO 25A/3.0mm Full-Face Flange Gasket 10K EA351GF-25

4550061561225

B092QVL42J

EA351GF-25

ESCO-3-0mm-Full-Face Flange Gasket-EA351GF-25

▪️Thickness…3.0mm
▪️Nominal Diameter…25A
▪️Operating Temperature Range…Water-based fluids: -100~183℃ Oil-based fluids: -100~180℃ Gas-based fluids: -100~180℃
▪️Material…NBR, aramid fiber, inorganic filler
▪️Applicable Fluids…Water-based, steam, chemical-based, oil-based, exhaust gas, etc.
▪️Maximum Pressure…Water/oil-based fluids: 3.0MPa Gas-based fluids: 1.0MPa
▪️Large-diameter gasket.
▪️Can be manufactured seamlessly up to 3810×3810mm (9S size).
▪️Used for relatively low-temperature flanges, valves, and equipment.
▪️Full-face packing
▪️JIS 10K
Brand Name: Esco
Thickness…3.0mm
Nominal Diameter…25A
Operating Temperature Range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
Material…NBR, aramid fiber, inorganic filler
Applicable Fluids…Water-based, steam, chemical-based, oil-based, exhaust gas, etc.
4550061561225
ESCO 25A/3.0mm Full-Face Flange Gasket 10K EA351GF-25
