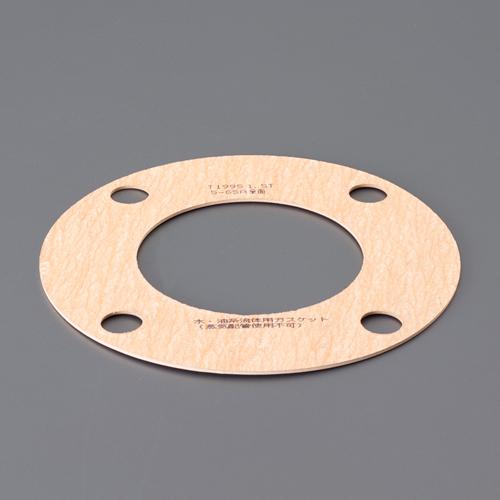

ESCO 80A/1.5mm Full-Face Flange Gasket 5K EA351GA-80
JAN
4550061549100
ASIN
B092QTZP9G
Maker
Model No.
EA351GA-80
Color
Size
Description
ESCO-1-5mm-Full-Face Flange Gasket-EA351GA-80
▪️Nominal Diameter…80A
▪️Thickness…1.5mm
▪️Operating Temperature Range…Water-based fluids: -100~183℃ Oil-based fluids: -100~180℃ Gas-based fluids: -100~180℃
▪️Material…NBR, aramid fiber, inorganic filler
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum Pressure…Water-based/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
▪️Full-face packing
▪️JIS5K
▪️Used in relatively low-temperature equipment
Brand Name: Esco
Nominal Diameter…80A
Thickness…1.5mm
Operating temperature range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
Material…NBR, aramid fiber, inorganic filler
Applicable fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
4550061549100
ESCO 80A/1.5mm Full-Face Flange Gasket 5K EA351GA-80
(text created at , 2025-05-10)
▪️Nominal Diameter…80A
▪️Thickness…1.5mm
▪️Operating Temperature Range…Water-based fluids: -100~183℃ Oil-based fluids: -100~180℃ Gas-based fluids: -100~180℃
▪️Material…NBR, aramid fiber, inorganic filler
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum Pressure…Water-based/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
▪️Full-face packing
▪️JIS5K
▪️Used in relatively low-temperature equipment
Brand Name: Esco
Nominal Diameter…80A
Thickness…1.5mm
Operating temperature range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
Material…NBR, aramid fiber, inorganic filler
Applicable fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
4550061549100
ESCO 80A/1.5mm Full-Face Flange Gasket 5K EA351GA-80
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
923 JPY (Including Tax)
